Omschrijving

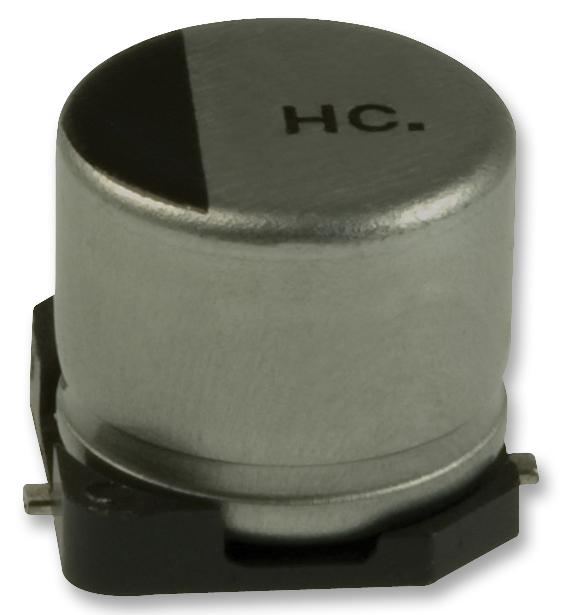

PANASONIC - EEEHC1A330R - SMD Aluminium Electrolytic Capacitor, Radial Can - SMD, 33 µF, 10 V, 3000 hours @ 105°C, Polar
- AE Capacitor Case: Radial Can - SMD
- Capacitance: 33µF
- Voltage Rating: 10V
- ESR: -
- Product Range: HC Series
- Lifetime @ Temperature: 3000 hours @ 105°C
- Operating Temperature Min: -40°C
- Operating Temperature Max: 105°C
- Ripple Current AC: 43mA
- Diameter: 5mm
- Height: 5.8mm
- Automotive Qualification Standard: AEC-Q200
- MSL: -
- SVHC: No SVHC (12-Jan-2017)
- Capacitance Tolerance: ± 20%
- Capacitance Tolerance ±: ± 20%
- Capacitor Case Style: Radial Can - SMD
- External Length / Height: 5.8mm
- Operating Temperature Range: -40°C to +105°C
