Omschrijving

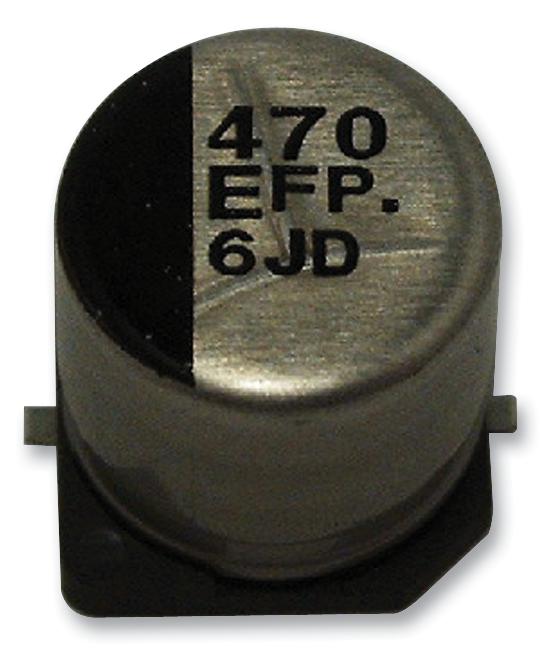

PANASONIC - EEETP1A471AP - SMD Aluminium Electrolytic Capacitor, Radial Can - SMD, 470 µF, 10 V, 0.15 ohm
- AE Capacitor Case: Radial Can - SMD
- Capacitance: 470µF
- Voltage Rating: 10V
- ESR: 0.15ohm
- Product Range: -
- Lifetime @ Temperature: 3000 hours @ 125°C
- Operating Temperature Min: -40°C
- Operating Temperature Max: 125°C
- Ripple Current AC: 500mA
- Diameter: 10mm
- Height: 10.2mm
- MSL: -
- SVHC: No SVHC (12-Jan-2017)
- Capacitance Tolerance: ± 20%
- Capacitance Tolerance ±: ± 20%
- Capacitor Case Style: Radial Can - SMD
- External Length / Height: 10.2mm
- Impedance: 0.15ohm
- Impedance Frequency: 100kHz
- Impedance Temperature: 20°C
- Operating Temperature Range: -40°C to +125°C
- Ripple Current Frequency: 100kHz
- Ripple Current Temperature: 125°C
