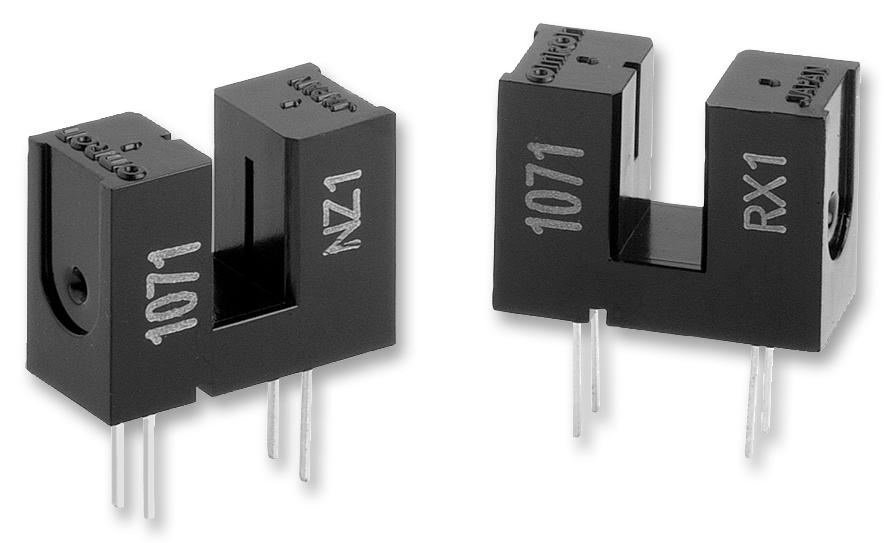

OMRON - EESX1106 - Transmissive Photo Interrupter, Phototransistor, Through Hole, 3 mm, 0.4 mm, 50 mA, 5 V
- Sensor Output: Phototransistor
- Sensor Mounting: Through Hole
- Gap Width: 3mm
- Aperture Width: 0.4mm
- Forward Current If: 50mA
- Reverse Voltage Vr: 5V
- Forward Voltage: 1.3V
- Product Range: EE-SX1106 Series
- Automotive Qualification Standard: -
- External Depth: 5.4mm
- External Length / Height: 6mm
- External Width: 4.2mm
- Input Current: 50mA
- No. of Channels: 1Channels
- No. of Pins: 4Pins
- Operating Temperature Max: 85°C
- Operating Temperature Min: -25°C
- Operating Temperature Range: -25°C to +85°C
- Optocoupler Output Type: Phototransistor
- Output: Aperture
- Output Voltage: 30V
- Peak Wavelength: 950nm
- Sensing Distance Max: 3mm
