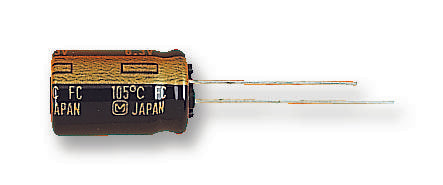

PANASONIC - EEUFC1V821L - Electrolytic Capacitor, 820 µF, 35 V, ± 20%, Radial Leaded, 5000 hours @ 105°C, Polar
- Capacitance: 820µF
- Voltage Rating: 35V
- Product Range: FC Series
- Capacitance Tolerance: ± 20%
- Capacitor Terminals: Radial Leaded
- Diameter: 12.5mm
- Lead Spacing: 5mm
- Height: 25mm
- Operating Temperature Min: -55°C
- Operating Temperature Max: 105°C
- Lifetime @ Temperature: 5000 hours @ 105°C
- ESR: -
- Automotive Qualification Standard: AEC-Q200
- SVHC: No SVHC (15-Jan-2019)
- Capacitance Tolerance ±: ± 20%
- Impedance: 0.03ohm
- Lead Diameter: 0.6mm
- No. of Pins: 2Pins
- Operating Temperature Range: -55°C to +105°C
- Ripple Current AC: 1945mA
