Omschrijving

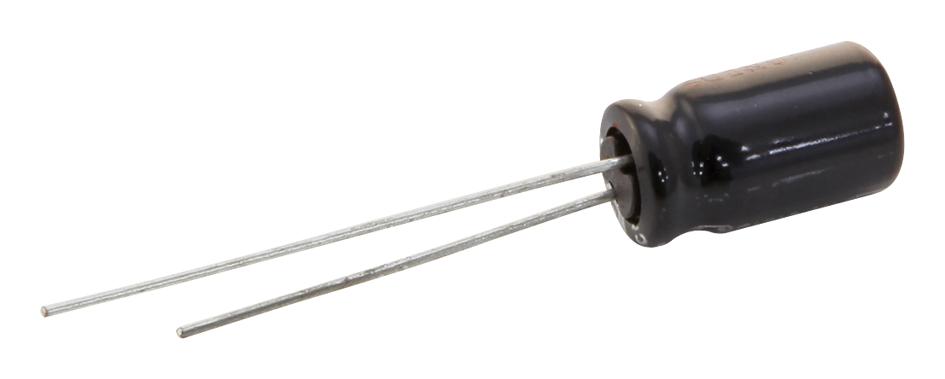

PANASONIC - EEUHD1H4R7 - Electrolytic Capacitor, 4.7 µF, 50 V, ± 20%, Radial Leaded, 1000 hours @ 105°C, Polar
- Capacitance: 4.7µF
- Voltage Rating: 50V
- Product Range: HD Series
- Capacitance Tolerance: ± 20%
- Capacitor Terminals: Radial Leaded
- Diameter: 5mm
- Lead Spacing: 2.5mm
- Height: 11mm
- Operating Temperature Min: -55°C
- Operating Temperature Max: 105°C
- Lifetime @ Temperature: 1000 hours @ 105°C
- ESR: -
- Automotive Qualification Standard: -
- SVHC: No SVHC (15-Jan-2019)
- AC Ripple Current @ 120Hz: 26mA
- Capacitance Tolerance ±: ± 20%
- Lead Diameter: 0.5mm
- Operating Temperature Range: -55°C to +105°C
