Omschrijving

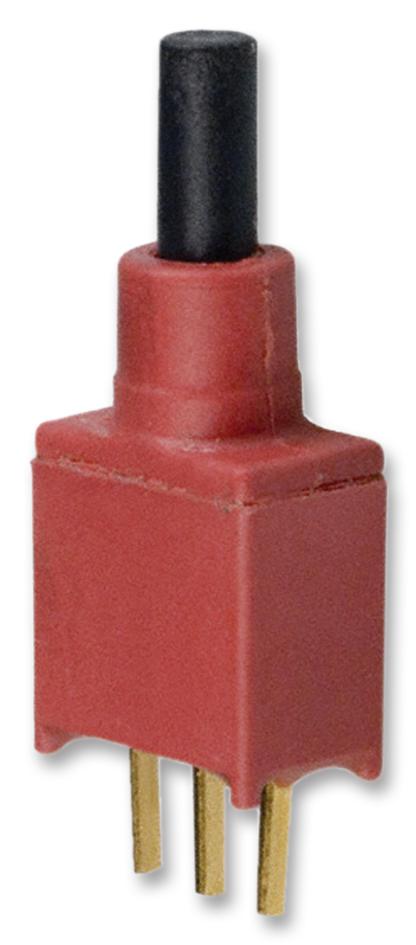

C&K COMPONENTS - EP12SD1AVBE - Pushbutton Switch, EP, SPDT, On-(On), Plunger, Black
- Switch Operation: On-(On)
- Contact Configuration: SPDT
- Contact Voltage AC Nom: 20V
- Contact Voltage DC Nom: 20V
- Contact Current Max: -
- Switch Terminals: PC Pin
- Product Range: EP Series
- SVHC: No SVHC (15-Jan-2019)
- Actuation Type: Round
- Actuator / Cap Colour: Black
- Colour: Red
- Contact Resistance: 20mohm
- Contact Voltage VAC: 20V
- Contact Voltage VDC: 20V
- External Depth: 14.3mm
- External Length / Height: 8.13mm
- External Width: 6.22mm
- Height Max: 8.13mm
- IP Rating: IP57
- Illumination Colour: Non-illuminated
- No. of Electrical Operations: 30000
- Operating Temperature Max: 85°C
- Operating Temperature Min: -30°C
- Power Rating: 400mVA
- Pushbutton Actuator Style: Plunger
- Pushbutton Switch Type: Standard
- Switch Mounting: Through Hole
