Omschrijving

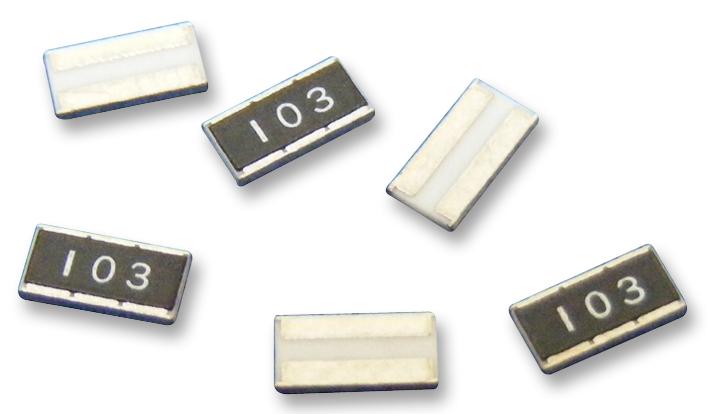

PANASONIC - ERJB3CFR033V - SMD Current Sense Resistor, 0.033 ohm, ERJB3, 0805 Wide, 500 mW, ± 1%, Thick Film
- Resistance: 0.033ohm
- Product Range: ERJB3 Series
- Resistor Case Style: 0805 Wide
- Power Rating: 500mW
- Resistance Tolerance: ± 1%
- Resistor Element Material: Thick Film
- Temperature Coefficient: 0ppm/°C to +300ppm/°C
- Automotive Qualification Standard: AEC-Q200
- SVHC: No SVHC (15-Jan-2019)
- External Depth: 1.25mm
- External Length / Height: 0.5mm
- External Width: 2mm
- No. of Pins: 2Pins
- Operating Temperature Max: 155°C
- Operating Temperature Min: -55°C
- Operating Temperature Range: -55°C to +155°C
- Overload Voltage: 200V
- Reel Quantity: 5000
- Resistor Mounting: Surface Mount Device
- Voltage Rating: 150V
