Omschrijving

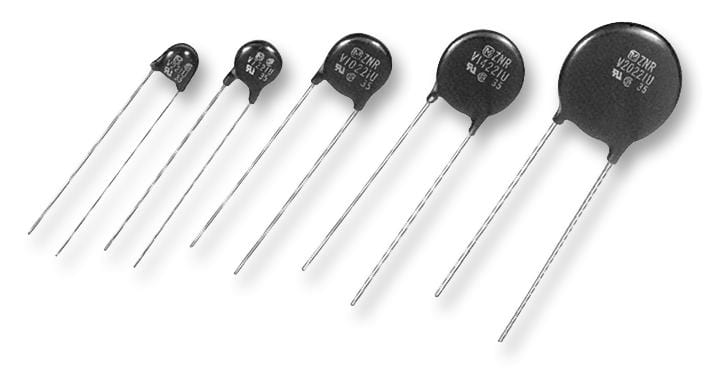

PANASONIC - ERZV05D271 - TVS Varistor, 175 V, 225 V, 475 V, Disc 5mm, Zinc Oxide Non-Linear Resistor (ZNR)
- Voltage Rating VAC: 175V
- Voltage Rating V DC: 225V
- Product Range: -
- Clamping Voltage Vc Max: 475V
- Varistor Case Style: Disc 5mm
- Varistor Type: High Surge Current
- Peak Surge Current @ 8/20µs: 800A
- Operating Temperature Min: -40°C
- Operating Temperature Max: 85°C
- Peak Energy (10/1000uS): 11J
- Automotive Qualification Standard: -
- SVHC: No SVHC (12-Jan-2017)
- Clamping Voltage: 475V
- Operating Temperature Range: -40°C to +85°C
- Suppressor Type: Absorber
- Surge Current: 800A
- Varistor Voltage: 270V
