Omschrijving

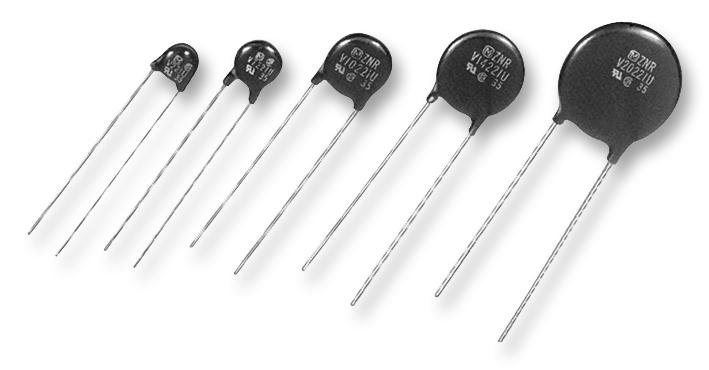

PANASONIC - ERZV05D361 - TVS Varistor, Surge Absorber, 230 V, 300 V, V, 620 V, Disc 5mm
- Voltage Rating VAC: 230V
- Voltage Rating V DC: 300V
- Product Range: V Series
- Clamping Voltage Vc Max: 620V
- Varistor Case Style: Disc 5mm
- Varistor Type: Zinc Oxide Non-Linear Resistor (ZNR)
- Peak Surge Current @ 8/20µs: 800A
- Operating Temperature Min: -40°C
- Operating Temperature Max: 85°C
- Peak Energy (10/1000uS): 16J
- Automotive Qualification Standard: -
- SVHC: No SVHC (27-Jun-2018)
- Clamping Voltage: 620V
- Operating Temperature Range: -40°C to +85°C
- Suppressor Type: Absorber
- Surge Current: 800A
- Varistor Voltage: 360V
