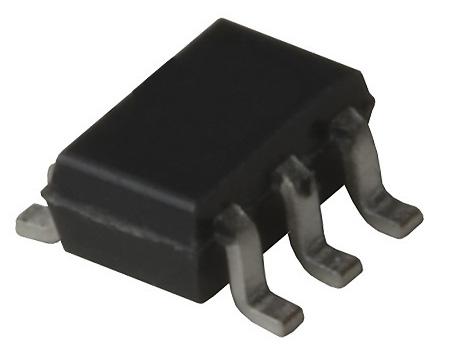

FDG6301N MOSFET, Dual, N, SMD, 6-SC-70 ONSEMI

ONSEMISKU:FDG6301N Bestelcode:1471045

Prijs:
Actie prijs€0,72

Incl. BTW Verzendkosten berekening in de checkout

Voorraad:
Op voorraad (501 units)

Documenten en downloads

Omschrijving

ONSEMI - FDG6301N - Dual MOSFET, N Channel, 25 V, 220 mA, 4 ohm, SC-70, Surface Mount

  • Transistor Polarity: Dual N Channel
  • Continuous Drain Current Id: 220mA
  • Drain Source Voltage Vds: 25V
  • On Resistance Rds(on): 4ohm
  • Rds(on) Test Voltage Vgs: 4.5V
  • Threshold Voltage Vgs: 850mV
  • Power Dissipation Pd: 300mW
  • Transistor Case Style: SC-70
  • No. of Pins: 6Pins
  • Operating Temperature Max: 150°C
  • Product Range: -
  • Automotive Qualification Standard: -
  • MSL: MSL 1 - Unlimited
  • SVHC: No SVHC (27-Jun-2018)
  • Continuous Drain Current Id, N Channel: 220mA
  • Current Id Max: 220mA
  • Drain Source Voltage Vds, N Channel: 25V
  • Module Configuration: Dual
  • On Resistance Rds(on), N Channel: 2.6ohm
  • Operating Temperature Min: -55°C
  • Operating Temperature Range: -55°C to +150°C
  • Termination Type: Surface Mount Device
  • Voltage Vds Typ: 25V
  • Voltage Vgs Max: 850mV
  • Voltage Vgs Rds on Measurement: 4.5V
