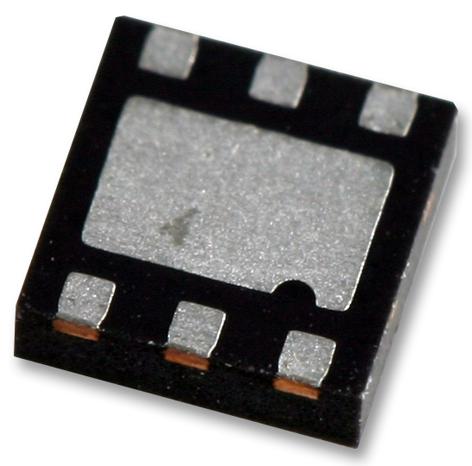

FDMA291P MOSFET, P, MLP6 ONSEMI

ONSEMISKU:FDMA291P Bestelcode:1324794

Prijs:
Actie prijs€1,12

Incl. BTW Verzendkosten berekening in de checkout

Voorraad:
Op voorraad (1840 units)

Documenten en downloads

Omschrijving

ONSEMI - FDMA291P - Power MOSFET, P Channel, 20 V, 6.6 A, 0.036 ohm, µFET, Surface Mount

  • Transistor Polarity: P Channel
  • Continuous Drain Current Id: 6.6A
  • Drain Source Voltage Vds: -20V
  • On Resistance Rds(on): 0.036ohm
  • Rds(on) Test Voltage Vgs: -700mV
  • Threshold Voltage Vgs: -700mV
  • Power Dissipation Pd: 2.4W
  • Transistor Case Style: µFET
  • No. of Pins: 8Pins
  • Operating Temperature Max: 150°C
  • Product Range: -
  • Automotive Qualification Standard: -
  • MSL: MSL 1 - Unlimited
  • SVHC: No SVHC (27-Jun-2018)
  • Current Id Max: -6.6A
  • Current Temperature: 25°C
  • Full Power Rating Temperature: 25°C
  • Junction Temperature Tj Max: 150°C
  • Junction Temperature Tj Min: -55°C
  • Operating Temperature Min: -55°C
  • Operating Temperature Range: -55°C to +150°C
  • Pulse Current Idm: 24A
  • Termination Type: Surface Mount Device
  • Voltage Vds: -20V
  • Voltage Vds Typ: -20V
  • Voltage Vgs Max: 8V
  • Voltage Vgs Rds on Measurement: -4.5V
  • Voltage Vgs th Max: -1V
