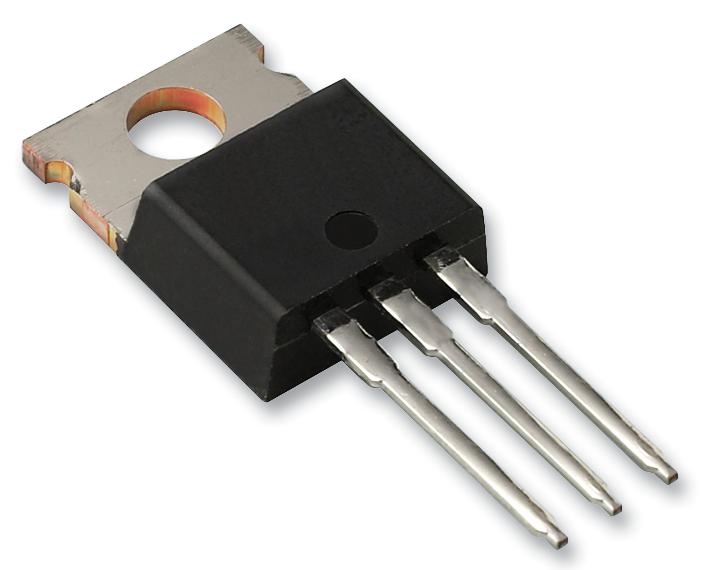

FDP060AN08A0 MOSFET, N Ch 80A 75V, TO-220AB ONSEMI

ONSEMISKU:FDP060AN08A0 Bestelcode:1700638

Prijs:
Actie prijs€5,23

Incl. BTW Verzendkosten berekening in de checkout

Voorraad:
Op voorraad (800 units)

Documenten en downloads

Omschrijving

ONSEMI - FDP060AN08A0 - Power MOSFET, Automotive, N Channel, 75 V, 80 A, 0.0048 ohm, TO-220, Through Hole

  • Transistor Polarity: N Channel
  • Continuous Drain Current Id: 80A
  • Drain Source Voltage Vds: 75V
  • On Resistance Rds(on): 0.0048ohm
  • Rds(on) Test Voltage Vgs: 10V
  • Threshold Voltage Vgs: 4V
  • Power Dissipation Pd: 255W
  • Transistor Case Style: TO-220
  • No. of Pins: 3Pins
  • Operating Temperature Max: 175°C
  • Product Range: -
  • Automotive Qualification Standard: -
  • MSL: -
  • SVHC: Lead (27-Jun-2018)
  • Current Id Max: 80A
  • Operating Temperature Min: -55°C
  • Operating Temperature Range: -55°C to +175°C
  • Termination Type: Through Hole
  • Voltage Vds Typ: 75V
  • Voltage Vgs Max: 4V
  • Voltage Vgs Rds on Measurement: 10V
