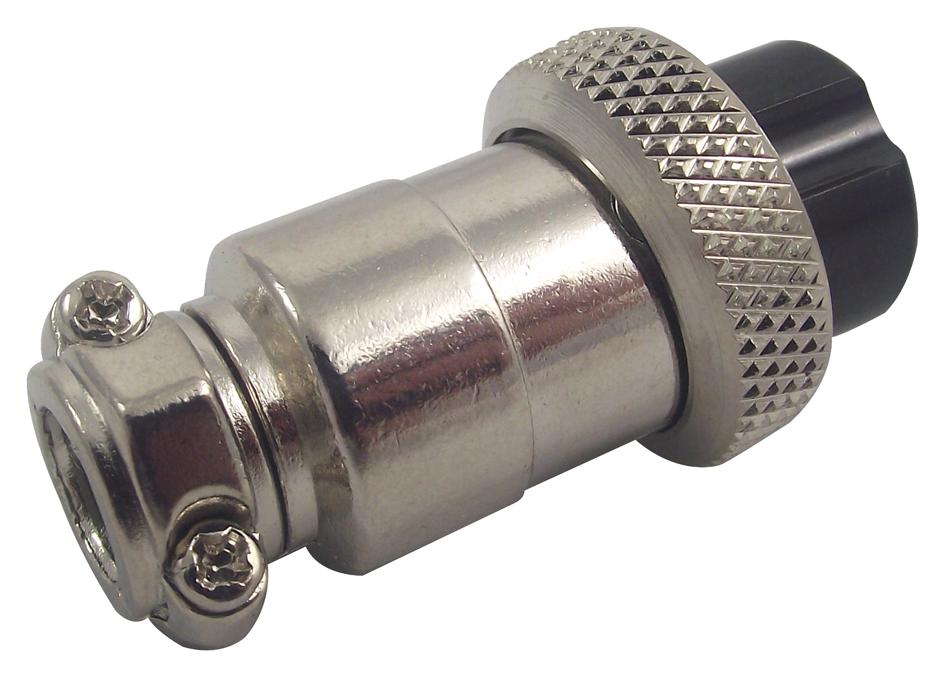

CLIFF ELECTRONIC COMPONENTS - FM686812 - Circular Connector, Cliffcon 68 Series, Cable Mount Receptacle, 2 Contacts, Solder Socket, Threaded
- Product Range: Cliffcon 68 Series
- Circular Connector Shell Style: Cable Mount Receptacle
- No. of Contacts: 2Contacts
- Circular Contact Type: Solder Socket
- Coupling Style: Threaded
- Connector Body Material: Nylon 6.6 (Polyamide 6.6) Body
- Connector Body Plating: -
- Contact Material: Brass
- Contact Plating: Gold
- SVHC: No SVHC (15-Jan-2019)
- Connector Mounting: Cable Mount
- Connector Type: Circular Industrial
- Contact Gender: Socket
- Contact Plating: Gold Plated Contacts
- Contact Termination: Solder
- Contact Termination Type: Solder
- Current Rating: 13A
- Gender: Plug
- IP / NEMA Rating: IP68
- Insulation Resistance: 2000Mohm
- No. of Mating Cycles: 500
- Operating Temperature Max: 85°C
- Operating Temperature Min: -25°C
- Voltage Rating VAC: 250V
