Omschrijving

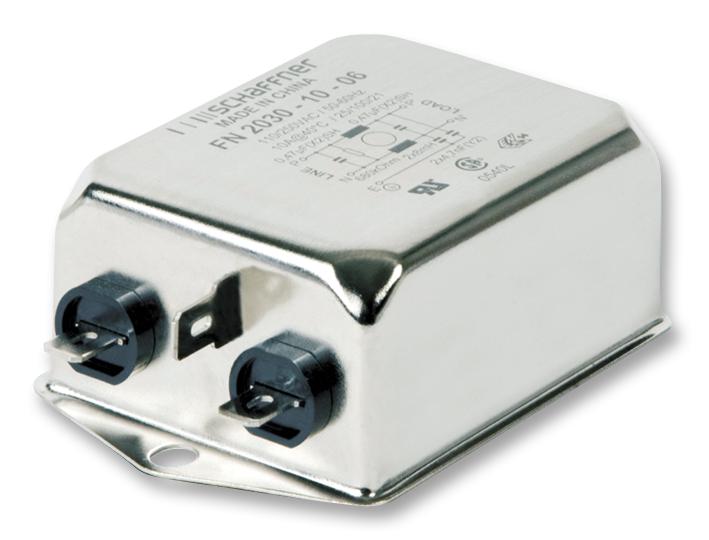

SCHAFFNER - FN2030Z-20-06 - Power Line Filter, Chassis, General Purpose, 250 V, 20 A, Single Phase, 1 Stage, Chassis Mount
- Current Rating: 20A
- Voltage Rating: 250V
- Filter Type: EMI, RFI
- Filter Terminals: Stud
- Inductance Min: 4mH
- Capacitance: 1µF
- Leakage Current Max: 870µA
- Product Range: -
- SVHC: No SVHC (15-Jan-2019)
- Bleed Resistor Resistance: 330kohm
- External Depth: 40.3mm
- External Length / Height: 85mm
- External Width: 54mm
- Voltage Rating VAC: 250V
