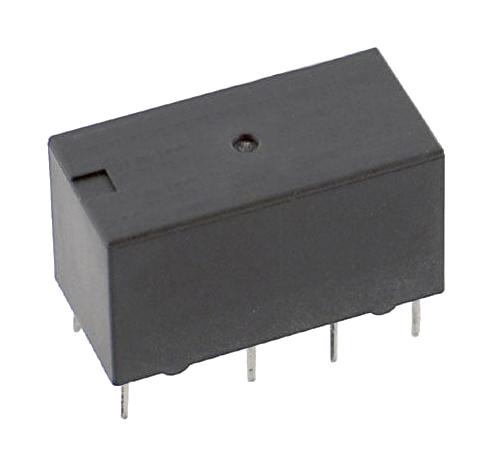

OMRON - G2R-24 DC12 - General Purpose Relay, G2R Series, Power, Non Latching, DPDT, 12 VDC, 5 A
- Contact Configuration: DPDT
- Coil Voltage: 12VDC
- Contact Current: 5A
- Product Range: G2R Series
- Relay Mounting: Through Hole
- Coil Type: Non Latching
- Contact Voltage VAC: 380VAC
- Relay Terminals: Solder
- Contact Voltage VDC: 125VDC
- Contact Material: Silver Alloy
- Coil Resistance: 275ohm
- Approvals & Standards: CSA, UL, VDE
- Coil Current: 43.6mA
- Coil Voltage VDC Nom: 12V
- Contact Current Max: 5A
- Contact Voltage AC Nom: 380V
- Contact Voltage DC Nom: 125V
- External Depth: 29mm
- External Height: 25.5mm
- External Width: 13mm
- Nom Operating Power: 530mW
- Relay Type: Power - General Purpose
