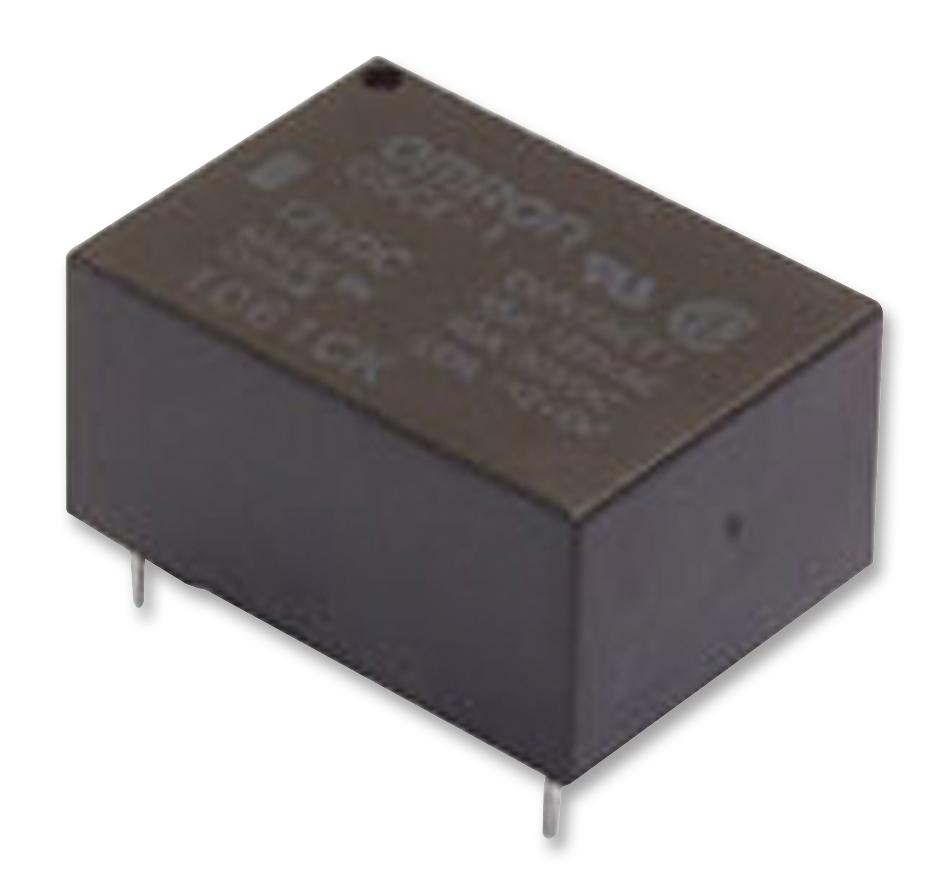

OMRON - G5V-1 DC24 - Signal Relay, Ultra-Miniature, 24 VDC, SPDT, 1 A, G5V-1, Through Hole, Non Latching
- Coil Voltage: 24VDC
- Contact Configuration: SPDT
- Contact Current: 1A
- Product Range: G5V-1 Series
- Relay Mounting: Through Hole
- Coil Type: Non Latching
- Relay Terminals: Solder
- Contact Voltage VAC: 125VAC
- Contact Voltage VDC: 60VDC
- Contact Material: Silver Gold
- Coil Resistance: 3.84kohm
- Approval Bodies: CSA, UL
- Approval Category: FCC Part 68
- Approvals & Standards: CSA, UL
- Coil Current: 6.25mA
- Coil Power Continuous: 150mW
- Coil Voltage VDC Nom: 24V
- Contact Current AC Max: 500mA
- Contact Current Max: 1A
- Contact Voltage AC Nom: 125V
- Contact Voltage DC Nom: 24V
- External Depth: 7.5mm
- External Height: 10mm
- External Width: 12.5mm
- Operating Temperature Max: 70°C
- Operating Temperature Min: -40°C
- Operating Time: 5ms
- Release Time: 5ms
