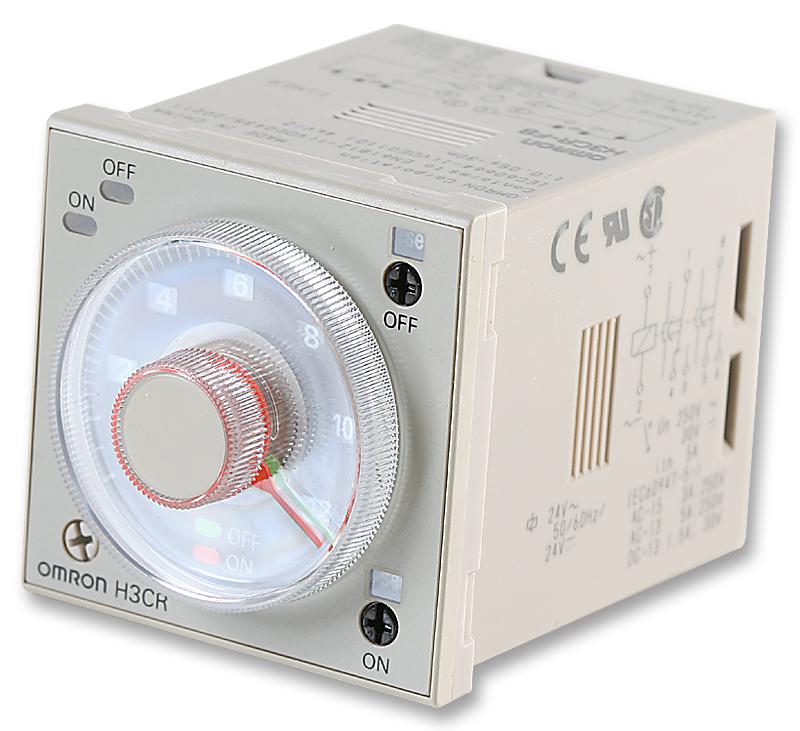

H3CR-F8 24AC/DC Timer, Recycling Omron

OMRONSKU:H3CR-F8 24AC/DC Bestelcode:560558

Prijs:
Actie prijs€137,09

Incl. BTW Verzendkosten berekening in de checkout

Voorraad:
Nog maar 4 producten leverbaar

Documenten en downloads

Omschrijving

OMRON - H3CR-F8 24AC/DC - Analogue Timer, Recycling, H3CR-F, Flicker Off Start, 14 Ranges, 0.05 s, 300 h, Solid State

  • Product Range: H3CR-F Series
  • Timer Functions: Flicker Off Start
  • No. of Timing Ranges: 14Ranges
  • Time Min: 0.05s
  • Time Max: 300h
  • Timer Output: Solid State
  • Supply Voltage Max: 24V
  • Current Rating Nom: 5A
  • Connection / Termination: Plug-In
  • Panel Cutout Height: 45mm
  • Panel Cutout Width: 45mm
  • Adjustment Type: Rotary
  • Coil Voltage VDC Nom: 24V
  • Contact Configuration: DPDT
  • Contact Current AC Max: 5A
  • Contact Current DC Max: 5A
  • Contact Rating: 5A
  • Contact Voltage AC Max: 24V
  • Contact Voltage DC Max: 24V
  • Delay Time Range: 0.05s to 30h
  • External Depth: 78mm
  • External Length / Height: 48mm
  • External Width: 48mm
  • Height: 48mm
  • No. of Pins: 8Pins
  • Nom Input Voltage: 24V
  • Operating Time Range: 0.05sec - 30hour
  • Relay Mounting: Panel
  • Repeat Accuracy +: 0.3%
  • Reset Time: 0.1s
  • Supply Voltage V AC: 24VAC
  • Supply Voltage V DC: 24VDC
  • Switch Current Max: 5A
  • Switching Current Max: 5A
  • Timing Adjustment: Knob
