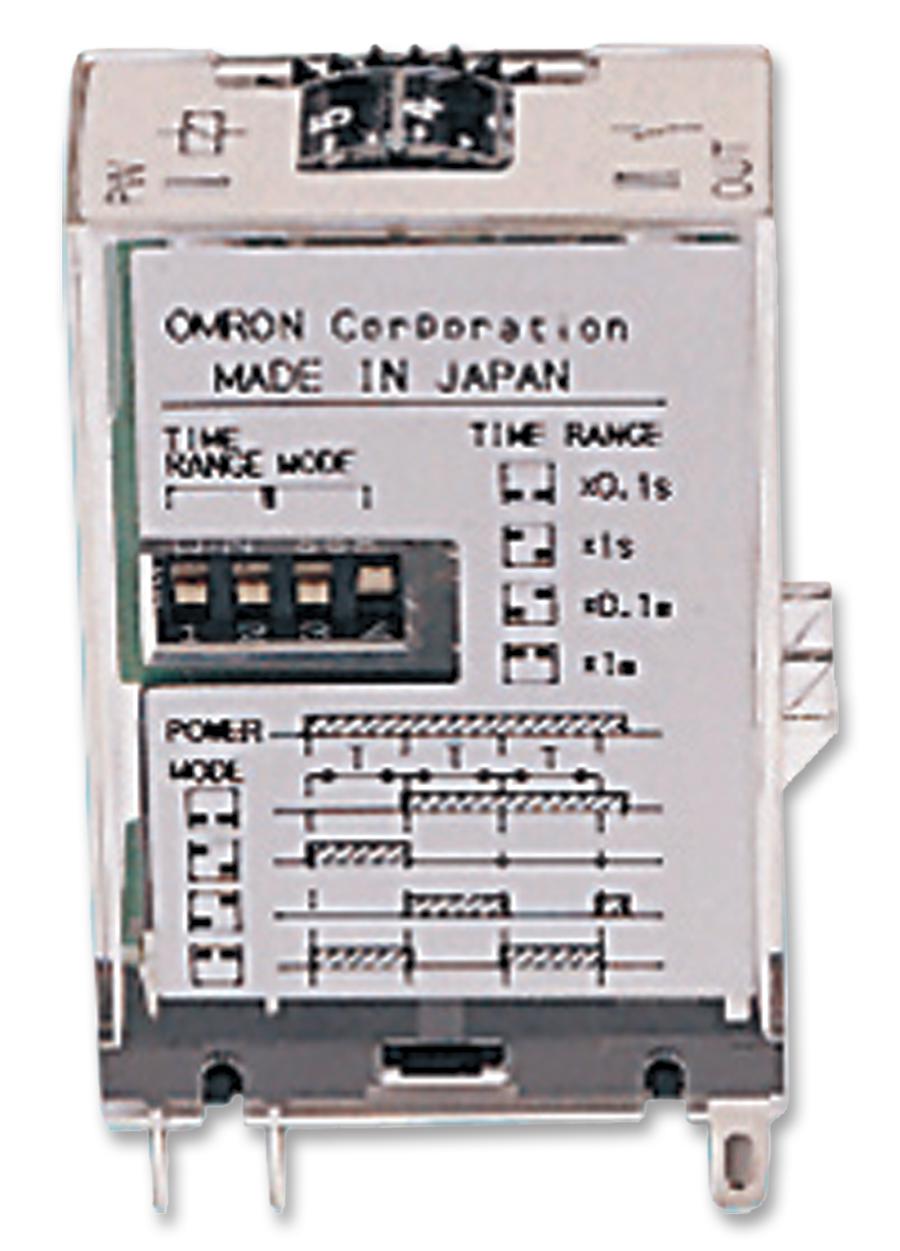

H3RN-2 DC24 Timer, Multifunction, 24Vdc Omron

OMRONSKU:H3RN-2 DC24 Bestelcode:734433

Prijs:
Actie prijs€70,10

Incl. BTW Verzendkosten berekening in de checkout

Voorraad:
Op voorraad (6 units)

Documenten en downloads

Omschrijving

OMRON - H3RN-2 DC24 - Analogue Timer, H3RN, Multifunction, 4 Ranges, 0.1 s, 10 min, Solid State

  • Product Range: H3RN Series
  • Timer Functions: Multifunction
  • No. of Timing Ranges: 4Ranges
  • Time Min: 0.1s
  • Time Max: 10min
  • Timer Output: Solid State
  • Supply Voltage Max: 24VDC
  • Current Rating Nom: 3A
  • Connection / Termination: Plug-In
  • Panel Cutout Height: 28.8mm
  • Panel Cutout Width: 12.8mm
  • Adjustment Type: DIP Switch
  • Approval Bodies: CSA, UL
  • Coil Voltage VDC Nom: 24V
  • Contact Configuration: SPDT-NO
  • Contact Current AC Max: 3A
  • Contact Voltage AC Max: 250V
  • Delay Time Range: 0.1s to 10min
  • External Depth: 28.8mm
  • External Length / Height: 47.4mm
  • External Width: 12.8mm
  • Height: 47.4mm
  • No. of Pins: 4Pins
  • Nom Input Voltage: 24VDC
  • Operating Time Range: 0.1 to 1 s, 1 to 10s, 0.1 to 1m, 1 to 10m, .1 to 1 hr, 1 to 10 hr
  • Relay Mounting: Quick Connect
  • Supply Voltage V DC: 24VDC
  • Timing Adjustment: DIP Switch
