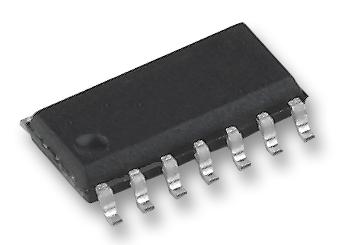

NEXPERIA - HEF4047BT,653 - Monostable / Astable Multivibrator, HEF4047, 50 ns, 2.4 mA, 4.5 V to 15.5 V, SOIC-14
- Logic Family / Base Number: HEF4047
- Multivibrator Type: Monostable / Astable
- Output Current: 2.4mA
- Supply Voltage Min: 4.5V
- Supply Voltage Max: 15.5V
- Logic Case Style: SOIC
- No. of Pins: 14Pins
- Propagation Delay: 50ns
- Logic IC Family: HEF4000
- Logic IC Base Number: 4047
- Operating Temperature Min: -40°C
- Operating Temperature Max: 70°C
- Product Range: -
- Automotive Qualification Standard: -
- RoHS Phthalates Compliant: Yes
- MSL: MSL 1 - Unlimited
- SVHC: No SVHC (27-Jun-2018)
- Base Number: 4047
- Fall Time tf: 20ns
- Logic Function Number: 4047
- Logic IC Base Number: 4047
- Logic IC Function: Monostable/Astable Multivibrator
- No. of Gates: 1
- Operating Temperature Range: -40°C to +70°C
- Rise Time: 20ns
- Supply Voltage: 15V
- Supply Voltage Range: 4.5V to 15.5V
- Termination Type: Surface Mount Device
