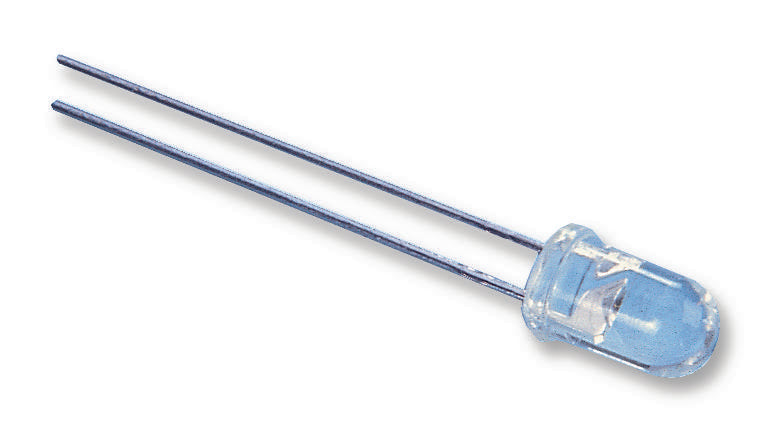

BROADCOM - HLMP-C423 - LED, Orange, Through Hole, T-1 3/4 (5mm), 20 mA, 1.9 V, 600 nm
- LED Colour: Orange
- LED Mounting: Through Hole
- LED Case Size: T-1 3/4 (5mm)
- Forward Current If: 20mA
- Forward Voltage: 1.9V
- Wavelength Typ: 600nm
- Luminous Intensity: 90.2mcd
- Viewing Angle: 25°
- Lens Shape: Round
- Product Range: -
- Automotive Qualification Standard: -
- MSL: -
- SVHC: No SVHC (27-Jun-2018)
- Bulb Size: T-1 3/4 (5mm)
- Current If Luminous Intensity: 20mA
- External Length / Height: 8.71mm
- Forward Current If Max: 20mA
- Forward Voltage VF Max: 1.9V
- LED / Lamp Size: 5mm / T-1 3/4
- LED Type: Standard
- Lead Cross-section Depth: 0.5mm
- Lead Cross-section Width: 0.5mm
- Lead Length: 23mm
- Lead Spacing: 2.54mm
- Lens Diameter: 5mm
- Luminous Intensity Typ: 170mcd
- No. of Pins: 2Pins
- Operating Temperature Max: 100°C
- Operating Temperature Min: -40°C
- Operating Temperature Range: -40°C to +100°C
- PIV Max: 5V
- Peak Forward Current: 30mA
- Peak Wavelength: 600nm
- Voltage Vf Typ: 1.9V
