HLMP-CM3A-Z10DD LED, 5mm, INGAN, Green, 30DEG BROADCOM

BROADCOMSKU:HLMP-CM3A-Z10DD Bestelcode:1814433

Prijs:
Actie prijs€3,12

Incl. BTW Verzendkosten berekening in de checkout

Voorraad:
Op voorraad (18313 units)

Documenten en downloads

Omschrijving

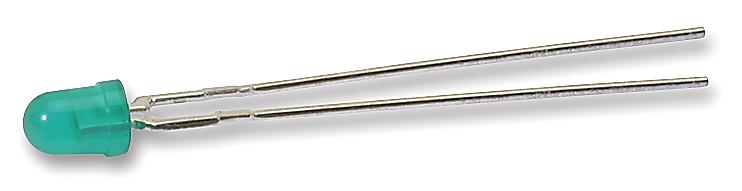

BROADCOM - HLMP-CM3A-Z10DD - LED, Green, Through Hole, T-1 3/4 (5mm), 20 mA, 3.2 V, 525 nm

  • LED Colour: Green
  • LED Mounting: Through Hole
  • LED Case Size: T-1 3/4 (5mm)
  • Forward Current If: 20mA
  • Forward Voltage: 3.2V
  • Wavelength Typ: 525nm
  • Luminous Intensity: 21cd
  • Viewing Angle: 30°
  • Lens Shape: Round
  • Product Range: -
  • Automotive Qualification Standard: -
  • MSL: -
  • SVHC: No SVHC (27-Jun-2018)
  • Bulb Size: T-1 3/4 (5mm)
  • Dominant Wavelength: 525nm
  • Forward Voltage VF Max: 3.8V
  • LED / Lamp Size: 5mm
  • LED Type: Standard
  • Luminous Intensity Max: 21000mcd
  • Luminous Intensity Min: 12000mcd
  • No. of Pins: 2Pins
  • Operating Temperature Max: 85°C
  • Operating Temperature Min: -40°C
  • Operating Temperature Range: -40°C to +85°C
