Omschrijving

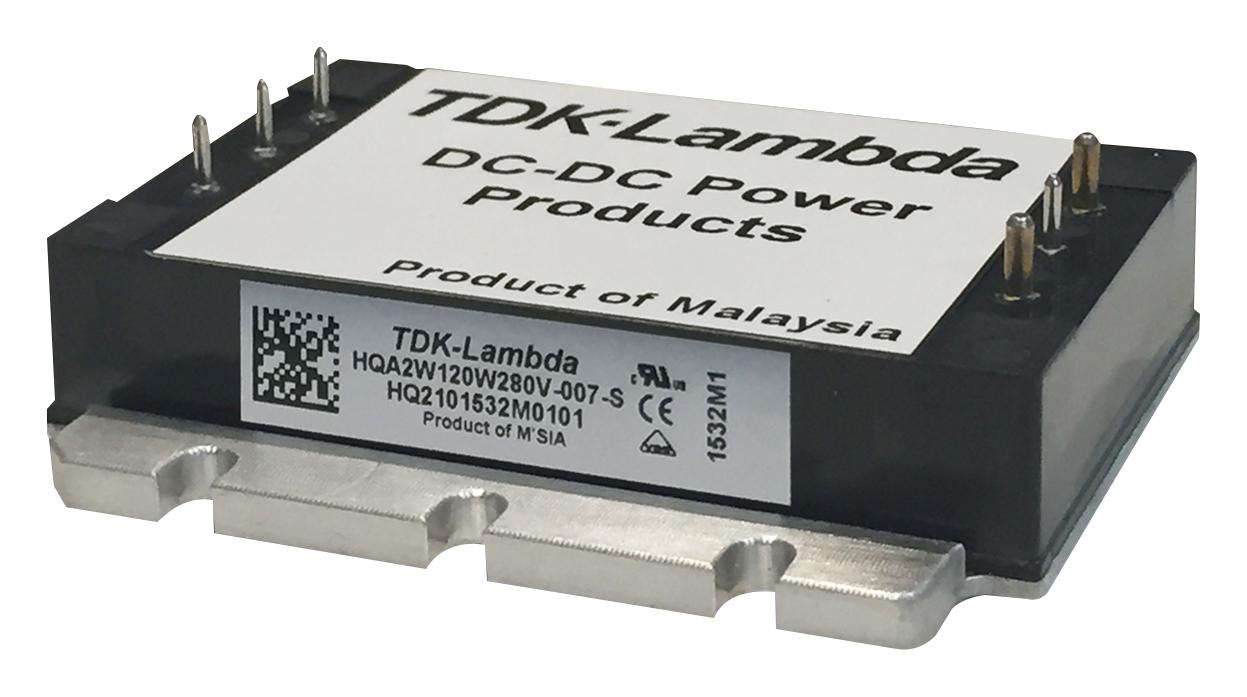

TDK-LAMBDA - HQA-2W-120W-120V-007-S - Isolated Through Hole DC/DC Converter, ITE, 4:1, 120 W, 1 Output, 12 V, 10 A
- No. of Outputs: 1 Output
- Output Power Max: 120W
- Output Voltage - Output 1: 12V
- Output Current - Output 1: 10A
- Output Voltage - Output 2: -
- Output Current - Output 2: -
- Output Voltage - Output 3: -
- Output Current - Output 3: -
- Product Range: HQA Series
- Input Voltage DC Min: 9V
- Input Voltage DC Max: 40V
- DC / DC Converter Output Type: Fixed, Adjustable
- DC / DC Converter Type: Quarter Brick
- DC / DC Converter Mounting: Through Hole
- Width: 55.9mm
- Height: 12.7mm
- Depth: 60.6mm
- SVHC: No SVHC (15-Jan-2018)
- Approvals & Standards: CSA, EN, UL
