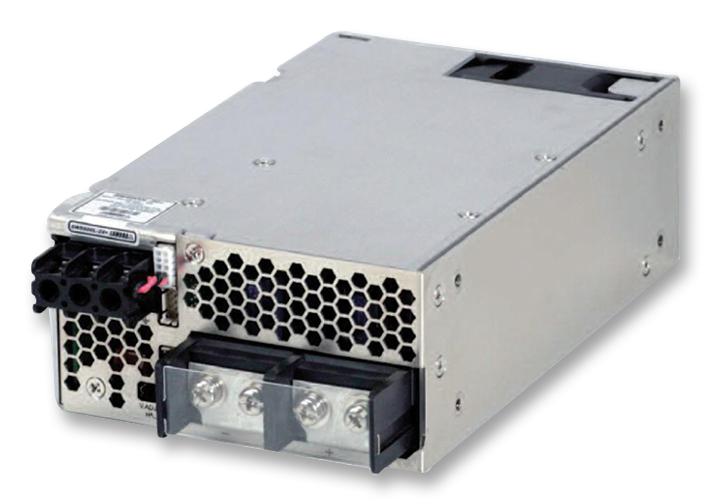

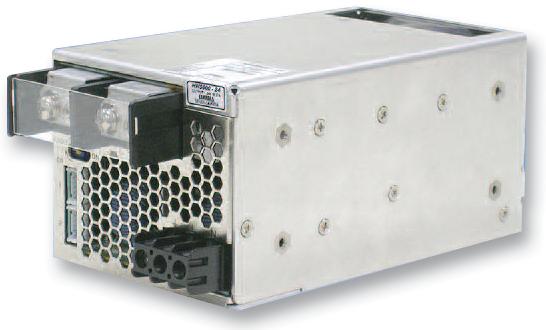

HWS300-12 PSU, Enclosed, 12V, 27A, 324W TDK-Lambda

TDK-LAMBDASKU:HWS300-12 Bestelcode:1456494

Prijs:
Actie prijs€431,14

Incl. BTW Verzendkosten berekening in de checkout

Voorraad:
Op voorraad (7 units)

Documenten en downloads

Omschrijving

TDK-LAMBDA - HWS300-12 - AC/DC Enclosed Power Supply (PSU), ITE, 1 Outputs, 324 W, 12 V, 27 A

  • No. of Outputs: 1Outputs
  • Output Power Max: 324W
  • Output Voltage - Output 1: 12V
  • Output Current - Output 1: 27A
  • Output Voltage - Output 2: -
  • Output Current - Output 2: -
  • Output Voltage - Output 3: -
  • Output Current - Output 3: -
  • Output Voltage - Output 4: -
  • Current, Output 4: -
  • Input Voltage VAC: 85V AC to 265V AC
  • Power Supply Output Type: Adjustable, Fixed
  • Product Range: HWS Series
  • SVHC: No SVHC (15-Jan-2018)
  • Applications: Industrial, Lighting, Telecom
  • Approval Bodies: CE, CSA, EN, UL
  • Efficiency: 83%
  • External Depth: 165mm
  • External Length / Height: 82mm
  • External Width: 61mm
  • Height: 82mm
  • Input Voltage AC Max: 265V
  • Input Voltage AC Min: 85V
  • Inrush Current: 40A
  • Length: 165mm
  • Line Regulation: 48mV
  • Load Regulation: 72mV
  • No. of Outputs: 1 Output
  • Operating Temperature Max: 70°C
  • Operating Temperature Min: -10°C
  • Output Current Max: 27A
  • Output Ripple Voltage pk-pk: 150mV
  • Output Voltage Max: 14.4V
  • Output Voltage Min: 9.6V
  • Power Rating: 324W
  • Power Supply Type: Switch Mode
  • Weight: 1kg
