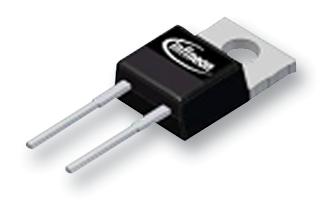

INFINEON - IDH06G65C6XKSA1 - Silicon Carbide Schottky Diode, CoolSiC 6G 650V, Single, 650 V, 16 A, 9.6 nC, TO-220
- Product Range: CoolSiC 6G 650V Series
- Diode Configuration: Single
- Repetitive Reverse Voltage Vrrm Max: 650V
- Continuous Forward Current If: 16A
- Total Capacitive Charge Qc: 9.6nC
- Diode Case Style: TO-220
- No. of Pins: 2 Pin
- Junction Temperature Tj Max: 175°C
- Automotive Qualification Standard: -
- SVHC: No SVHC (27-Jun-2018)
- Forward Current If(AV): 16A
- Forward Surge Current Ifsm Max: 38A
- Forward Voltage VF Max: 1.35V
- Operating Temperature Max: 175°C
- Semiconductor Technology: SiC
