Omschrijving

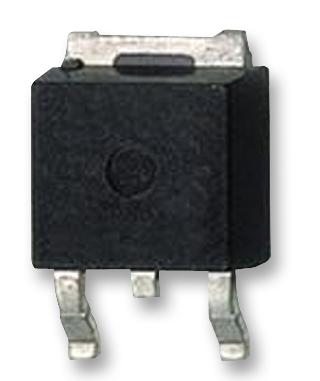

VISHAY - IRFR9220PBF - Power MOSFET, P Channel, 200 V, 3.6 A, 1.5 ohm, TO-252 (DPAK), Surface Mount
- Transistor Polarity: P Channel
- Continuous Drain Current Id: 3.6A
- Drain Source Voltage Vds: -200V
- On Resistance Rds(on): 1.5ohm
- Rds(on) Test Voltage Vgs: -10V
- Threshold Voltage Vgs: -4V
- Power Dissipation Pd: 42W
- Transistor Case Style: TO-252
- No. of Pins: 3Pins
- Operating Temperature Max: 150°C
- Product Range: -
- Automotive Qualification Standard: -
- MSL: MSL 1 - Unlimited
- Alternate Case Style: D-PAK
- Current Id Max: -3.6A
- Current Temperature: 25°C
- Full Power Rating Temperature: 25°C
- Junction to Case Thermal Resistance A: 3°C/W
- Operating Temperature Min: -55°C
- Operating Temperature Range: -55°C to +150°C
- Pulse Current Idm: 14A
- SMD Marking: IRFR9220
- Termination Type: Surface Mount Device
- Voltage Vds: 200V
- Voltage Vds Typ: -200V
- Voltage Vgs Max: 20V
- Voltage Vgs Rds on Measurement: -10V
