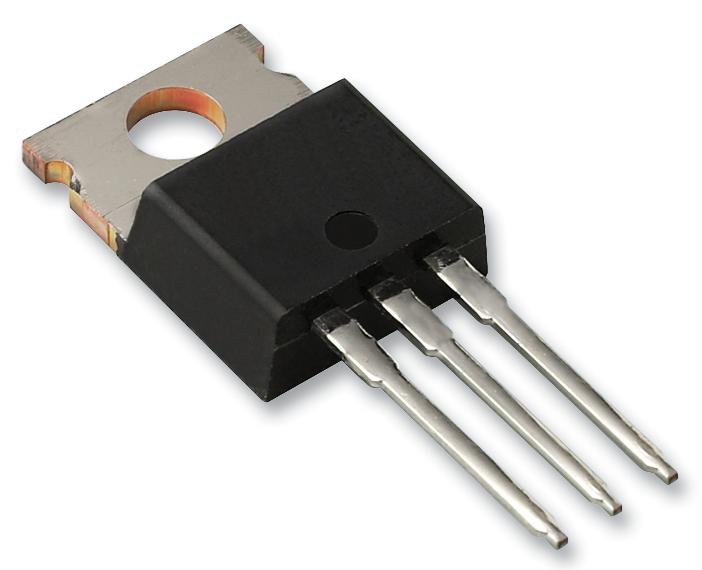

VISHAY - IRL640PBF - Power MOSFET, N Channel, 200 V, 17 A, 0.18 ohm, TO-220AB, Through Hole
- Transistor Polarity: N Channel
- Continuous Drain Current Id: 17A
- Drain Source Voltage Vds: 200V
- On Resistance Rds(on): 0.18ohm
- Rds(on) Test Voltage Vgs: 5V
- Threshold Voltage Vgs: 2V
- Power Dissipation Pd: 125W
- Transistor Case Style: TO-220AB
- No. of Pins: 3Pins
- Operating Temperature Max: 150°C
- Product Range: -
- Automotive Qualification Standard: -
- MSL: -
- Current Id Max: 17A
- Junction to Case Thermal Resistance A: 1°C/W
- On State resistance @ Vgs = 10V: 180mohm
- Operating Temperature Min: -55°C
- Pulse Current Idm: 68A
- Voltage Vds Typ: 200V
- Voltage Vgs Max: 10V
- Voltage Vgs Rds on Measurement: 5V
- Voltage Vgs th Max: 2V
