Omschrijving

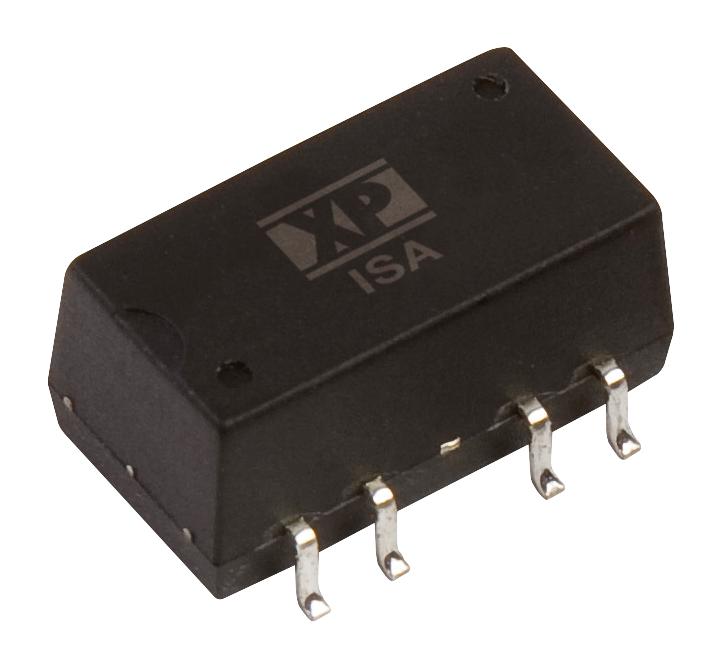

XP POWER - ISA2405-H - Isolated Surface Mount DC/DC Converter, 3kV Isolation, ITE, 1:1, 1 W, 2 Output, 5 V, 100 mA
- No. of Outputs: 2 Output
- Output Power Max: 1W
- Output Voltage - Output 1: 5V
- Output Current - Output 1: 100mA
- Output Voltage - Output 2: -5V
- Output Current - Output 2: 100mA
- Output Voltage - Output 3: -
- Output Current - Output 3: -
- Product Range: ISA Series
- Input Voltage DC Min: 21.6V
- Input Voltage DC Max: 26.4V
- DC / DC Converter Output Type: Fixed
- DC / DC Converter Type: DIP
- DC / DC Converter Mounting: Surface Mount Device
- Width: 15.24mm
- Height: 7.25mm
- Depth: 8.3mm
- SVHC: No SVHC (15-Jan-2018)
- No. of Outputs: 2Outputs
