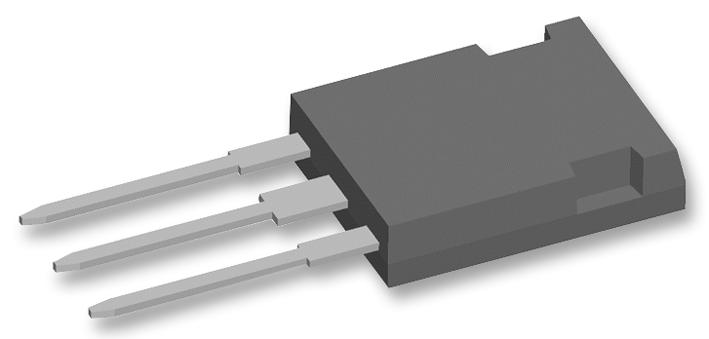

IXYS SEMICONDUCTOR - IXFR200N10P - Power MOSFET, N Channel, 100 V, 133 A, 0.009 ohm, ISOPLUS-247, Through Hole
- Transistor Polarity: N Channel
- Continuous Drain Current Id: 133A
- Drain Source Voltage Vds: 100V
- On Resistance Rds(on): 0.009ohm
- Rds(on) Test Voltage Vgs: 15V
- Threshold Voltage Vgs: 5V
- Power Dissipation Pd: 300W
- Transistor Case Style: ISOPLUS-247
- No. of Pins: 3Pins
- Operating Temperature Max: 175°C
- Product Range: -
- Automotive Qualification Standard: -
- MSL: -
- SVHC: No SVHC (12-Jan-2017)
- Capacitance Ciss Typ: 7600pF
- Current Id Max: 133A
- Isolation Voltage: 2.5kV
- N-channel Gate Charge: 235nC
- Operating Temperature Min: -55°C
- Operating Temperature Range: -55°C to +175°C
- Reverse Recovery Time trr Max: 150ns
- Rth: 0.5
- Termination Type: Through Hole
- Voltage Vds Typ: 100V
- Voltage Vgs Max: 20V
- Voltage Vgs Rds on Measurement: 10V
