Omschrijving

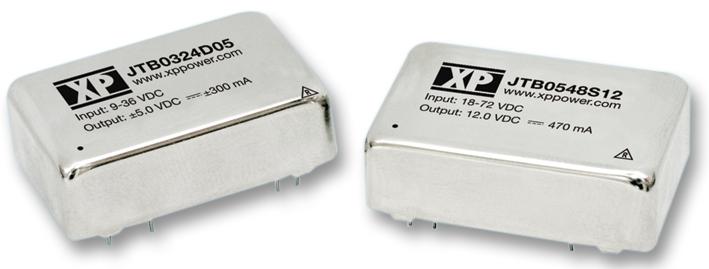

XP POWER - JTB0524D12 - Isolated Through Hole DC/DC Converter, Regulated, ITE, 4:1, 5 W, 2 Output, 12 V, 230 mA
- No. of Outputs: 2 Output
- Output Power Max: 5W
- Output Voltage - Output 1: 12V
- Output Current - Output 1: 230mA
- Output Voltage - Output 2: -12V
- Output Current - Output 2: 230mA
- Output Voltage - Output 3: -
- Output Current - Output 3: -
- Product Range: JTB03 Series
- Input Voltage DC Min: 9V
- Input Voltage DC Max: 36V
- DC / DC Converter Output Type: Fixed
- DC / DC Converter Type: DIP
- DC / DC Converter Mounting: Through Hole
- Width: 20.3mm
- Height: 10.2mm
- Depth: 31.8mm
- SVHC: No SVHC (15-Jan-2018)
- Efficiency: 80%
- External Depth: 10.2mm
- External Length / Height: 31.8mm
- External Width: 20.3mm
- Isolation Voltage: 1.5kV
- Line Regulation: 0.5%
- Load Regulation: 1%
- No. of Outputs: 2Outputs
- Off Load Current: 25mA
- Operating Temperature Max: 100°C
- Operating Temperature Min: -25°C
- Output Current - Max: 230mA
- Output Ripple Voltage pk-pk: 100mV
- Output Voltage +: 12V
- Output Voltage -: 12V
- Power Rating: 5W
- Supply Voltage: 24V
