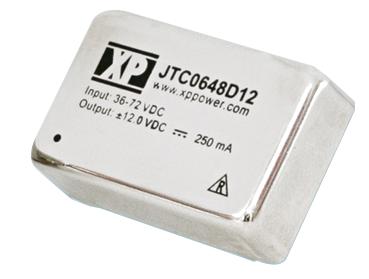

JTC0648D12 CONVERTER, DC/DC, 2O/P, 6W, 12V XP POWER

XP POWERSKU:JTC0648D12 Bestelcode:1435483

Prijs:
Actie prijs€71,13

Incl. BTW Verzendkosten berekening in de checkout

Voorraad:
Op voorraad (30 units)

Documenten en downloads

Omschrijving

XP POWER - JTC0648D12 - Isolated Through Hole DC/DC Converter, 4:1 Input, ITE, 4:1, 6 W, 2 Output, 12 V, 250 mA

  • No. of Outputs: 2 Output
  • Output Power Max: 6W
  • Output Voltage - Output 1: 12V
  • Output Current - Output 1: 250mA
  • Output Voltage - Output 2: -12V
  • Output Current - Output 2: 250mA
  • Output Voltage - Output 3: -
  • Output Current - Output 3: -
  • Product Range: -
  • Input Voltage DC Min: 18V
  • Input Voltage DC Max: 72V
  • DC / DC Converter Output Type: Fixed
  • DC / DC Converter Type: DIP
  • DC / DC Converter Mounting: Through Hole
  • Width: 20.32mm
  • Height: 10.4mm
  • Depth: 31.75mm
  • SVHC: No SVHC (15-Jan-2018)
  • Efficiency: 82%
  • External Depth: 10.5mm
  • External Length / Height: 31.75mm
  • External Width: 21.35mm
  • Isolation Voltage: 1.5kV
  • Line Regulation: 0.5%
  • Load Regulation: 0.5%
  • No. of Outputs: 2Outputs
  • Off Load Current: 15mA
  • Operating Temperature Max: 100°C
  • Operating Temperature Min: -40°C
  • Output Current - Max: 250mA
  • Output Ripple Voltage pk-pk: 60mV
  • Output Voltage +: 12V
  • Output Voltage -: 12V
  • Power Rating: 6W
  • Supply Voltage: 48V
