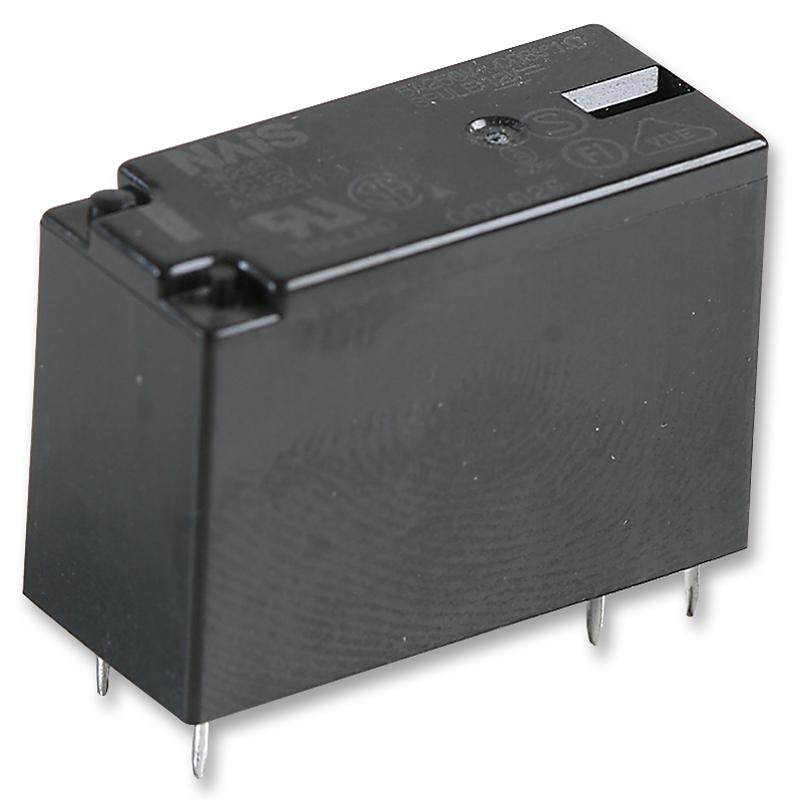

JVN1AF-5V-F Relay, SPST-NO, 125VAC, 30Vdc, 16A Panasonic

PANASONICSKU:JVN1AF-5V-F Bestelcode:2095684

Prijs:
Actie prijs€6,03

Incl. BTW Verzendkosten berekening in de checkout

Voorraad:
Op voorraad (37 units)

Documenten en downloads

Omschrijving

PANASONIC - JVN1AF-5V-F - General Purpose Relay, JV-N Series, Power, Non Latching, SPST-NO, 5 VDC, 16 A

  • Contact Configuration: SPST-NO
  • Coil Voltage: 5VDC
  • Contact Current: 16A
  • Product Range: JV-N Series
  • Relay Mounting: Through Hole
  • Coil Type: Non Latching
  • Contact Voltage VAC: 125VAC
  • Relay Terminals: Solder
  • Contact Voltage VDC: 30VDC
  • Contact Material: Silver Tin Oxide
  • Coil Resistance: 101ohm
  • SVHC: No SVHC (07-Jul-2017)
  • Coil Current: 44.4mA
  • Coil Voltage VDC Nom: 5V
  • Contact Current Max: 16A
  • Contact Voltage AC Nom: 125V
  • Contact Voltage DC Nom: 30V
  • External Depth: 22mm
  • External Height: 10.5mm
  • External Width: 16mm
  • Nom Operating Power: 200mW
  • Relay Type: Power
