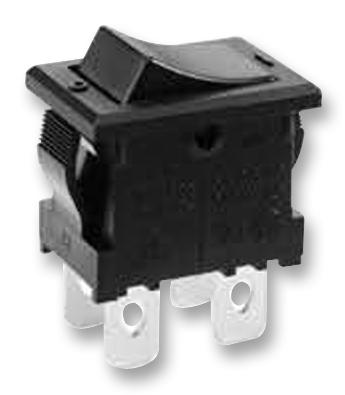

NKK SWITCHES - JWS21RAA - Rocker Switch, On-None-Off, DPST, Non Illuminated, Panel Mount, Black, JWS
- Illumination: Non Illuminated
- Contact Configuration: DPST
- Switch Operation: On-None-Off
- Actuator / Cap Colour: Black
- Switch Mounting: Panel
- Contact Current Max: 10A
- Contact Voltage AC Nom: 250V
- Contact Voltage DC Nom: -
- Product Range: JWS Series Series
- SVHC: No SVHC (15-Jan-2019)
- Approval Bodies: CSA, VDE
- Approval Category: UL Recognised
- Colour: Black
- Contact Current AC Max: 6A
- Contact Resistance: 10mohm
- Contact Voltage AC Max: 250V
- External Depth: 21mm
- External Width: 15mm
- Flammability Rating: UL94V-0
- Height: 16mm
- Insulation Resistance: 500Mohm
- Insulation Resistance Voltage: 500VDC
- Material: Polyamide
- No. of Electrical Operations: 10000
- No. of Mechanical Operations: 30000
- Operating Force: 5.39N
- Operating Temperature Max: 70°C
- Operating Temperature Min: -25°C
- Panel Cutout Depth: 19.2mm
- Panel Cutout Width: 5.08mm
- Panel Thickness Max: 2mm
- Panel Thickness Min: 0.75mm
