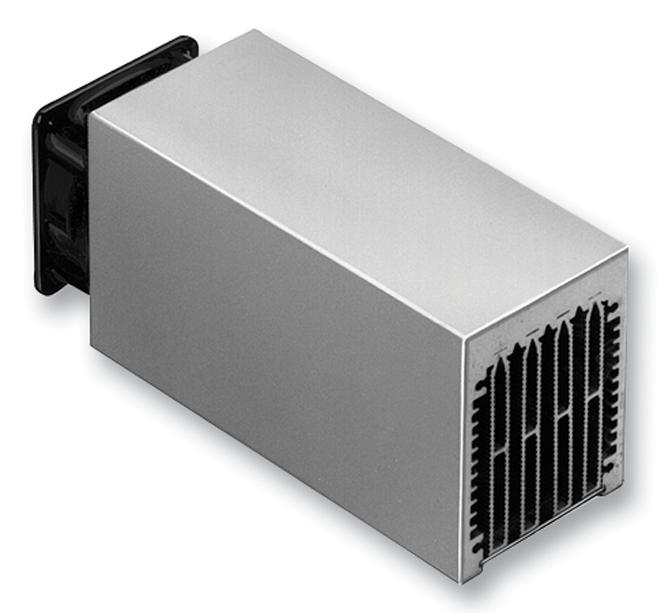

FISCHER ELEKTRONIK - LA 6/150 12V - Fan / Force Cooled Heat Sink, Hollow Fin Aggregate, 0.175 °C/W, 74 mm, 62 mm, 150 mm, 56 m³/h
- Thermal Resistance: 0.175°C/W
- External Height - Metric: 74mm
- External Width - Metric: 62mm
- External Length - Metric: 150mm
- Flow Rate Max: 56m³/h
- Noise Rating: 41dBA
- Heat Sink Mounting: Surface Mount
- Heat Sink Material: Aluminium
- External Height - Imperial: 2.91"
- External Width - Imperial: 2.44"
- External Length - Imperial: 5.91"
- Product Range: -
- SVHC: Lead (15-Jan-2019)
- Flow Rate: 40m³/h
- Operating Temperature Max: 70°C
- Operating Temperature Min: -20°C
- Power Consumption: 3.6W
- Speed Range Max: 6800rpm
- Surface Finish: Plain
- Voltage Rating V DC: 12V
- Weight: 66g
