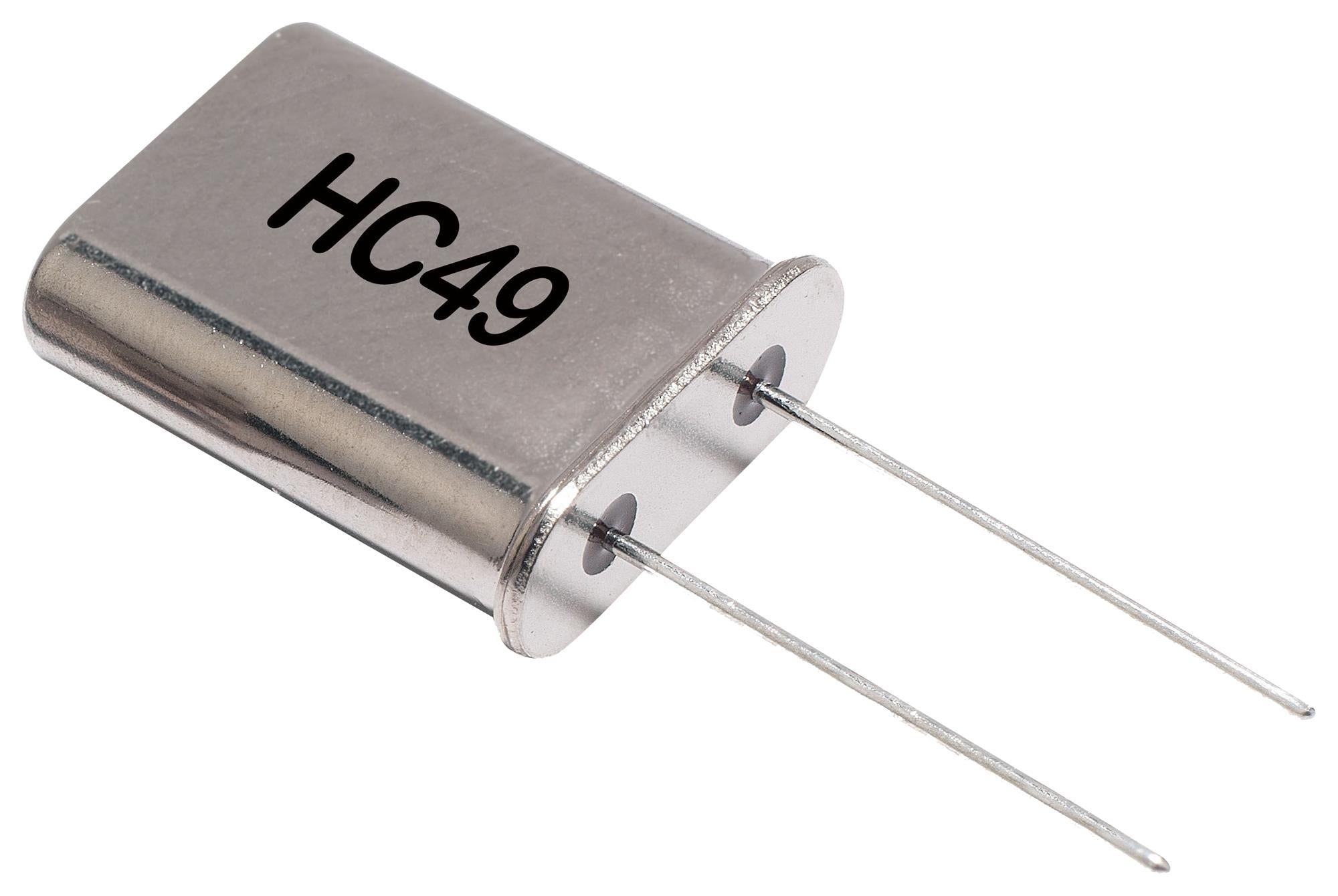

LFXTAL003231 Crystal, 16MHz IQD Frequency Products

IQD FREQUENCY PRODUCTS - LFXTAL003231 - Crystal, 16 MHz, Through Hole, 11mm x 4.65mm, 30 ppm, 30 pF, 20 ppm, HC-49

• Frequency Nom: 16MHz
• Crystal Case: Through Hole, 11mm x 4.65mm
• Frequency Stability + / -: 30ppm
• Load Capacitance: 30pF
• Frequency Tolerance + / -: 20ppm
• Product Range: HC-49 Series
• Operating Temperature Min: -10°C
• Operating Temperature Max: 60°C
• SVHC: No SVHC (15-Jan-2018)
• Accuracy: ± 100ppm
• Crystal Mounting Type: Through Hole
• Frequency: 16MHz
• Frequency Accuracy + @: 20ppm
• Frequency Accuracy - @: 20ppm
• Frequency Stability: ± 30ppm
• No. of Pins: 2Pins
• Operating Temperature Range: -10°C to +60°C
• Output Frequency: 16MHz
• Temperature Stability + @: 30ppm
• Temperature Stability - @: 30ppm
• Temperature Stabilty: ± 100ppm
