Omschrijving

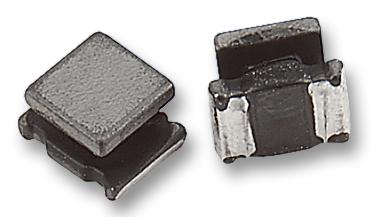

MURATA - LQH32MN220J23L - Wirewound Inductor, 22 µH, 2.8 ohm, 14 MHz, 150 mA, 1210 [3225 Metric], LQH32MN_23
- Inductance: 22µH
- Product Range: LQH32MN_23 Series
- DC Current Rating: 150mA
- High Frequency Inductor Case: 1210 [3225 Metric]
- Inductor Construction: Wirewound
- DC Resistance Max: 2.8ohm
- Inductance Tolerance: ± 5%
- Self Resonant Frequency Min: 14MHz
- SVHC: No SVHC (15-Jan-2019)
- External Depth: 2mm
- External Length / Height: 3.2mm
- External Width: 2.5mm
- Inductor Case Style: 1210 [3225 Metric]
- Operating Temperature Max: 85°C
- Operating Temperature Min: -25°C
