Omschrijving

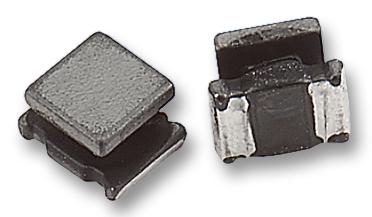

MURATA - LQH32MN470J23L - Wirewound Inductor, 47 µH, 4.3 ohm, 11 MHz, 100 mA, 1210 [3225 Metric], LQH32MN_23
- Inductance: 47µH
- Product Range: LQH32MN_23 Series
- DC Current Rating: 100mA
- High Frequency Inductor Case: 1210 [3225 Metric]
- Inductor Construction: Wirewound
- DC Resistance Max: 4.3ohm
- Inductance Tolerance: ± 5%
- Self Resonant Frequency Min: 11MHz
- SVHC: No SVHC (15-Jan-2019)
- External Depth: 2mm
- External Length / Height: 3.2mm
- External Width: 2.5mm
- Inductor Case Style: 1210 [3225 Metric]
- Operating Temperature Max: 85°C
- Operating Temperature Min: -25°C
