Documenten en downloads
Omschrijving
TDK-LAMBDA - LS75-36 - AC/DC Enclosed Power Supply (PSU), ITE, 1 Outputs, 75.6 W, 36 V, 2.1 A
- No. of Outputs: 1Outputs
- Output Power Max: 75.6W
- Output Voltage - Output 1: 36V
- Output Current - Output 1: 2.1A
- Output Voltage - Output 2: -
- Output Current - Output 2: -
- Output Voltage - Output 3: -
- Output Current - Output 3: -
- Output Voltage - Output 4: -
- Current, Output 4: -
- Input Voltage VAC: 88V AC to 264V AC
- Power Supply Output Type: Adjustable, Fixed
- Product Range: LS Series
- SVHC: No SVHC (15-Jan-2018)
- Applications: General Purpose
- Approval Bodies: CE, EN, FCC-B, IEC, UL
- Efficiency: 86%
- External Depth: 98mm
- External Length / Height: 38mm
- External Width: 129mm
- Frequency Max: 63Hz
- Frequency Min: 47Hz
- Height: 38mm
- Hold Up Time: 60ms
- Input Current: 1A
- Input Voltage: 88V AC to 264V AC
- Input Voltage AC Max: 264V
- Input Voltage AC Min: 88V
- Inrush Current: 40A
- Length: 98mm
- No. of Outputs: 1 Output
- Operating Temperature Max: 70°C
- Operating Temperature Min: -25°C
- Output Current Max: 2.1A
- Output Ripple Voltage pk-pk: 150mV
- Output Voltage Max: 40V
- Output Voltage Min: 32V
Verwachte verzendkosten
Bekijk ook eens

TDK-LAMBDA
LS150-5 PSU, Enclosed, 5V, 26A, 150W TDK-Lambda
Actie prijs€60,96
Op voorraad, 27 producten
TDK-LAMBDA
LS100-15 PSU, Enclosed, 15V, 7A, 100W TDK-Lambda
Actie prijs€48,93
Nog maar 7 producten over
TDK-LAMBDA
DSP10-12 PSU, DIN Rail, 12V, 0.83A, 10w TDK-Lambda
Actie prijs€41,20
Op voorraad, 70 producten
TDK-LAMBDA
DSP100-15 PSU, DIN Rail, 15V, 5A, 75W TDK-Lambda
Actie prijs€95,95
Nog maar 5 producten over
TDK-LAMBDA
DSP30-15 PSU, DIN Rail, 15V, 2A, 30W TDK-Lambda
Actie prijs€64,46
Op voorraad, 69 producten
XP POWER
ECL10US12-E PSU, 10w, 12V, ENCAPS, Pcb Mount XP Power
Actie prijs€55,63
Nog maar 7 producten over
TDK-LAMBDA
NV1-4G5FF-C POWER SUPPLY, AC-DC, MEDICAL, 4O/P, 200W TDK-LAMBDA
Actie prijs€344,04
Nog maar 3 producten over
TDK-LAMBDA
LS200-5 PSU, Enclosed, 5V, 40A, 200W TDK-Lambda
Actie prijs€91,41
Op voorraad, 21 producten
TDK-LAMBDA

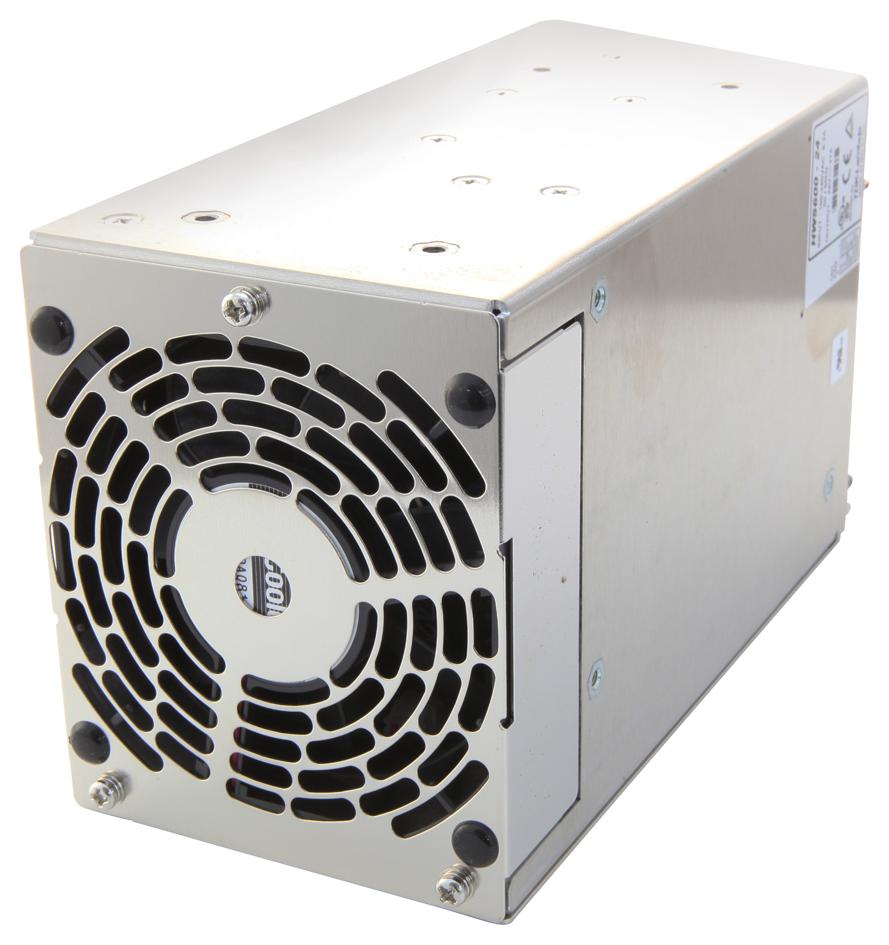

HWS600-24 PSU, Enclosed, 24V, 27A, 648W TDK-Lambda
