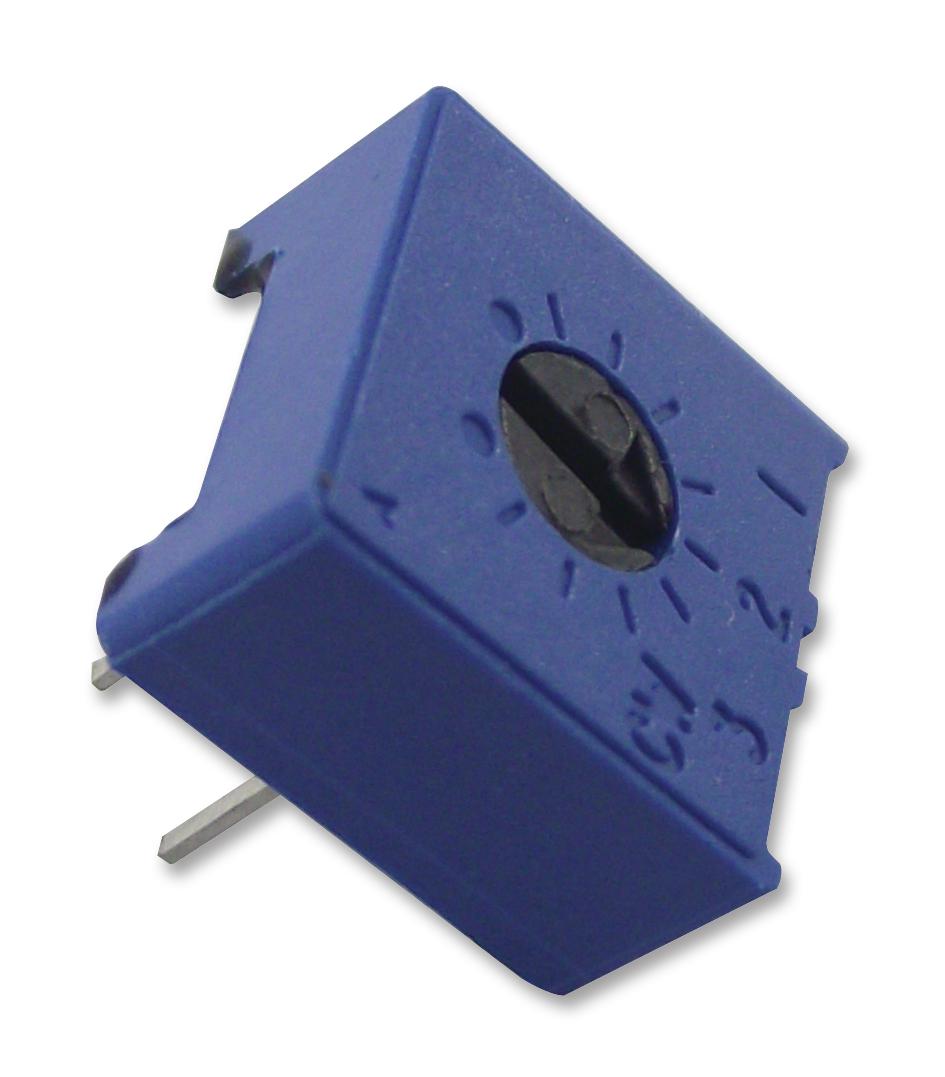

VISHAY - M63M101KB40 - Trimpot, Single Turn, Cermet, Top Adjust, 100 ohm, Through Hole, 1 Turns
- Track Resistance: 100ohm
- No. of Turns: 1Turns
- Potentiometer Mounting: Through Hole
- Product Range: 63M Series
- Power Rating: 500mW
- Resistance Tolerance: ± 10%
- Temperature Coefficient: ± 100ppm/°C
- Automotive Qualification Standard: -
- MSL: -
- Adjustment Type: Screwdriver Slot
- Approval Category: MIL-R-22097
- Contact Resistance Variation +: 1%
- End Resistance: 2ohm
- External Depth: 9.5mm
- External Length / Height: 4.83mm
- External Width: 9.5mm
- Full Power Rating Temperature: 70°C
- Lead Cross-section Depth: 0.81mm
- Lead Cross-section Width: 0.25mm
- Operating Temperature Max: 125°C
- Operating Temperature Min: -55°C
- Operating Temperature Range: -55°C to +125°C
- Proof Voltage: 1000V
- Resistance: 100ohm
- Resistor Element Material: Cermet
- Resistor Mounting: Through Hole
- Resistor Terminals: Radial Leaded
- Rotation Mechanical Angle: 270°
- Temperature Coeff. +: 100ppm/°C
- Temperature Coeff. -: 100ppm/°C
- Tolerance +: 10%
- Tolerance -: 10%
- Track Taper: Linear
- Voltage Rating: 400V
