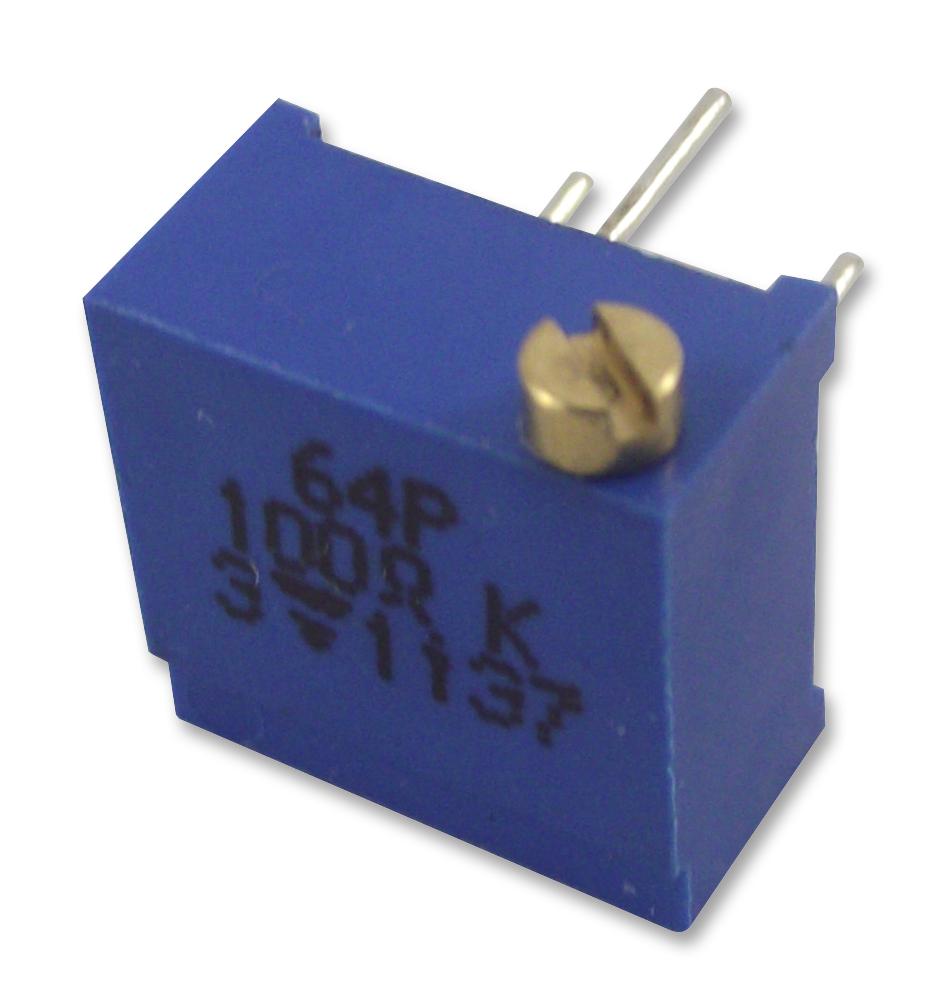

M64P202KB40 Trimmer, Pot, 2K, 23TURN, THD Vishay

VISHAYSKU:M64P202KB40 Bestelcode:9608346

Prijs:
Actie prijs€6,76

Incl. BTW Verzendkosten berekening in de checkout

Voorraad:
Op voorraad (176 units)

Documenten en downloads

Omschrijving

  • Track Resistance: 2kohm
  • No. of Turns: 23Turns
  • Potentiometer Mounting: Through Hole
  • Product Range: 64P Series
  • Power Rating: 500mW
  • Resistance Tolerance: ± 10%
  • Temperature Coefficient: ± 100ppm/°C
  • Automotive Qualification Standard: -
  • MSL: -
  • Adjustment Type: Screwdriver Slot
  • Approval Category: MIL-R-22097
  • Contact Resistance Variation +: 2%
  • End Resistance: 1ohm
  • External Length / Height: 4.83mm
  • Full Power Rating Temperature: 70°C
  • Lead Cross-section Depth: 0.51mm
  • Lead Cross-section Width: 0.25mm
  • Operating Temperature Max: 125°C
  • Operating Temperature Min: -55°C
  • Operating Temperature Range: -55°C to +125°C
  • Proof Voltage: 1000V
  • Resistance: 2kohm
  • Resistor Element Material: Cermet
  • Resistor Mounting: Through Hole
  • Resistor Terminals: Radial Leaded
  • Temperature Coeff. +: 100ppm/°C
  • Temperature Coeff. -: 100ppm/°C
  • Tolerance +: 10%
  • Tolerance -: 10%
  • Track Taper: Linear
  • Voltage Rating: 300V
  • Voltage Rating V DC: 300V
