Omschrijving

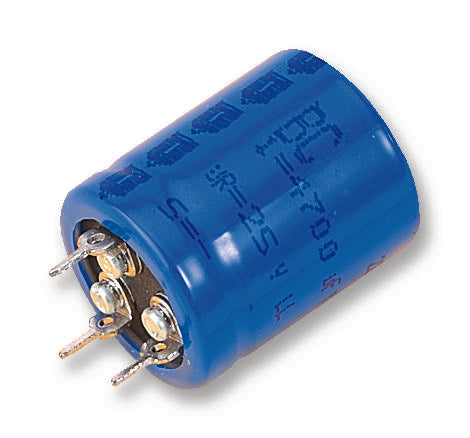

VISHAY - MAL205158222E3 - Electrolytic Capacitor, Long Life, 2200 µF, 63 V, ± 20%, Radial Leaded, 5000 hours @ 85°C, Polar
- Capacitance: 2200µF
- Voltage Rating: 63V
- Product Range: 051 PEC-PW Series
- Capacitance Tolerance: ± 20%
- Capacitor Terminals: Radial Leaded
- Diameter: 25mm
- Lead Spacing: 10mm
- Height: 30mm
- Operating Temperature Min: -40°C
- Operating Temperature Max: 85°C
- Lifetime @ Temperature: 5000 hours @ 85°C
- ESR: 0.083ohm
- Automotive Qualification Standard: -
- SVHC: No SVHC (27-Jun-2018)
- AC Ripple Current @ 100Hz: 2.5A
- Capacitance Tolerance ±: ± 20%
- Capacitor Mounting: Through Hole
- Climatic Category: 40/085/56
- External Length / Height: 30mm
- Leakage Current: 835µA
- No. of Pins: 3Pins
- Operating Temperature Range: -40°C to +85°C
- Operating life Time: 5000h
- Ripple Current AC: 2.5A
- Ripple Current Frequency: 100Hz
- Ripple Current Temperature: 85°C
- Tolerance +: 0.2%
- Tolerance -: 0.2%
- Voltage Rating DC Max: 63V
- Voltage Rating V DC: 63V
