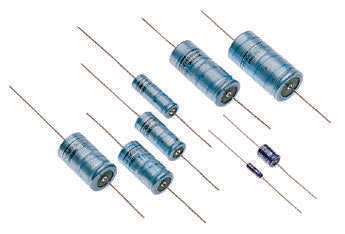

MAL211838478E3 Cap, 4.7µF, 63V, 20%, Through Hole Vishay

VISHAYSKU:MAL211838478E3 Bestelcode:1692356

Prijs:
Actie prijs€5,80

Incl. BTW Verzendkosten berekening in de checkout

Voorraad:
Op voorraad (1046 units)

Documenten en downloads

Omschrijving

VISHAY - MAL211838478E3 - Electrolytic Capacitor, 4.7 µF, 63 V, ± 20%, Axial Leaded, 4000 hours @ 125°C, Polar

  • Capacitance: 4.7µF
  • Voltage Rating: 63V
  • Product Range: 118 AHT Series
  • Capacitance Tolerance: ± 20%
  • Capacitor Terminals: Axial Leaded
  • Diameter: 6.5mm
  • Lead Spacing: -
  • Height: 18mm
  • Operating Temperature Min: -40°C
  • Operating Temperature Max: 125°C
  • Lifetime @ Temperature: 4000 hours @ 125°C
  • ESR: 24ohm
  • Automotive Qualification Standard: -
  • SVHC: No SVHC (27-Jun-2018)
  • AC Ripple Current @ 100Hz: 35.6mA
  • Capacitance Tolerance ±: ± 20%
  • Capacitor Mounting: Through Hole
  • External Length / Height: 18mm
  • Lead Diameter: 0.8mm
  • Leakage Current: 4.6µA
  • No. of Pins: 2Pins
  • Operating Temperature Range: -40°C to +125°C
  • Operating life Time: 4000h
  • Ripple Current Frequency: 100Hz
  • Ripple Current Temperature: 125°C
  • Tolerance +: 0.2%
  • Tolerance -: 0.2%
  • Voltage Rating DC Max: 63V
  • Voltage Rating V DC: 63V
