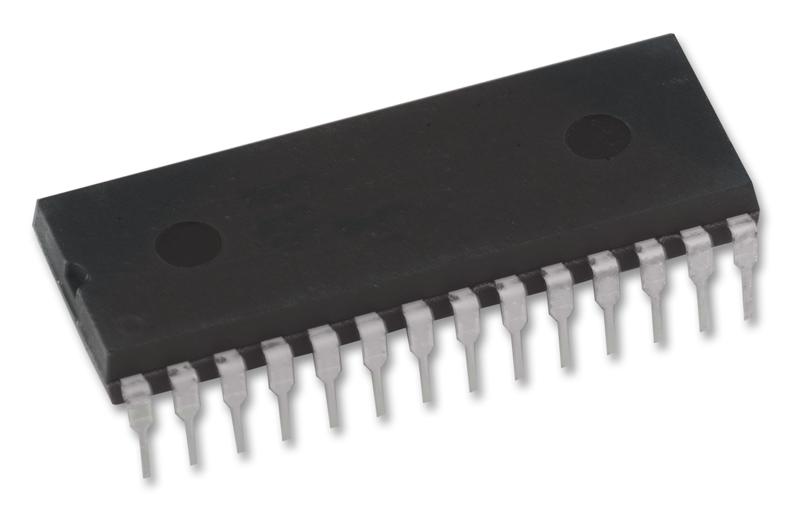

MAXIM INTEGRATED / ANALOG DEVICES - MAX1480ACPI+ - RS485/RS422 Tx/Rx, Isolated, 4.5V-5.5V supply, DIP-28
- Device Type: Transceiver
- IC Interface Type: RS422, RS485
- No. of Drivers: 2Drivers
- Supply Voltage Min: 4.5V
- Supply Voltage Max: 5.5V
- Driver Case Style: DIP
- No. of Pins: 28Pins
- Operating Temperature Min: 0°C
- Operating Temperature Max: 70°C
- Product Range: -
- Automotive Qualification Standard: -
- RoHS Phthalates Compliant: To Be Advised
- MSL: -
- IC Generic Number: 1480
- SVHC: No SVHC (15-Jan-2018)
- Base Number: 1480
- Data Rate: 2.5Mbps
- Device Marking: MAX1480ACPI+
- IC Temperature Range: Commercial
- Line, Bus Drive, Receive, Transceiver Type: Complete Isolated
- Logic Function Number: 1480
- No. of Channels: 1Channels
- No. of Transceivers: 1
- Operating Temperature Range: 0°C to +70°C
- Supply Current: 120mA
- Supply Voltage Range: 4.5V to 5.5V
- Termination Type: Through Hole
