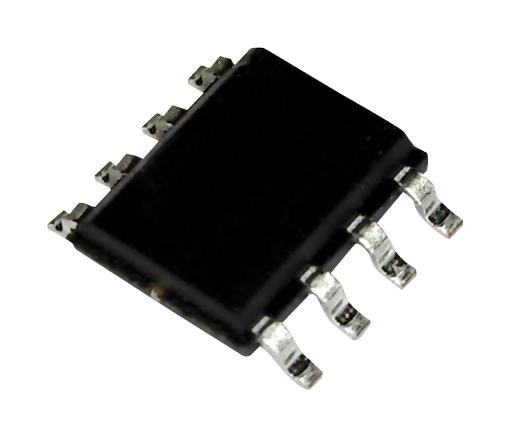

MAXIM INTEGRATED / ANALOG DEVICES - MAX1649ESA+ - DC/DC Controller, High Efficiency, Low Dropout, 3V to 16V, 1 Output, Buck, 300kHz, SOIC-8
- Supply Voltage Min: 3V
- Supply Voltage Max: 16V
- No. of Outputs: 1 Output
- Duty Cycle (%): 96.5%
- Controller IC Case Style: SOIC
- No. of Pins: 8Pins
- Switching Frequency: 300kHz
- Topology: Buck (Step Down)
- Operating Temperature Min: -40°C
- Operating Temperature Max: 85°C
- Product Range: -
- Automotive Qualification Standard: -
- RoHS Phthalates Compliant: To Be Advised
- MSL: MSL 1 - Unlimited
- SVHC: No SVHC (15-Jan-2018)
- Adjustable Output Voltage Max: 16V
- Adjustable Output Voltage Min: 1.5V
- Base Number: 1649
- Frequency: 300kHz
- IC Temperature Range: Industrial
- Input Voltage Max: 16V
- No. of Outputs: 1Outputs
- Operating Temperature Range: -40°C to +85°C
- Output Current: 2.5A
- Output Current Max: 2.5A
- Output Voltage: 5V
- Primary Input Voltage: 5V
- Termination Type: Surface Mount Device
- Voltage Regulator Type: Step Down (Buck)
