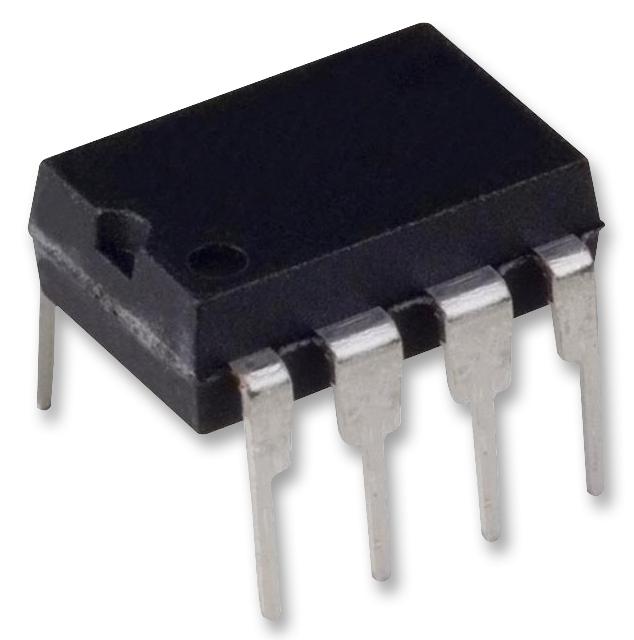

MAXIM INTEGRATED / ANALOG DEVICES - MAX543BCPA+ - Digital to Analogue Converter, 12 bit, 3 Wire, Serial, 4.75V to 5.25V, 11.4V to 15.75V, DIP
- Resolution (Bits): 12bit
- Sampling Rate: -
- Data Interface: 3 Wire, Serial
- Supply Voltage Range: 4.75V to 5.25V, 11.4V to 15.75V
- ADC / DAC Case Style: DIP
- No. of Pins: 8Pins
- Input Channel Type: Serial
- Operating Temperature Min: 0°C
- Operating Temperature Max: 70°C
- Product Range: -
- Automotive Qualification Standard: -
- MSL: -
- SVHC: No SVHC (15-Jan-2018)
- Base Number: 543
- IC Temperature Range: Commercial
- Linearity Error ADC / DAC +: 1LSB
- Linearity Error ADC / DAC -: 1LSB
- No. of Bits: 12bit
- No. of Channels: 3Channels
- Operating Temperature Range: 0°C to +70°C
- Output Type: Current
- Settling Time: 0.25µs
- Supply Current: 5µA
- Supply Voltage Max: 15.75V
- Supply Voltage Min: 4.75V
- Termination Type: Through Hole
