Omschrijving

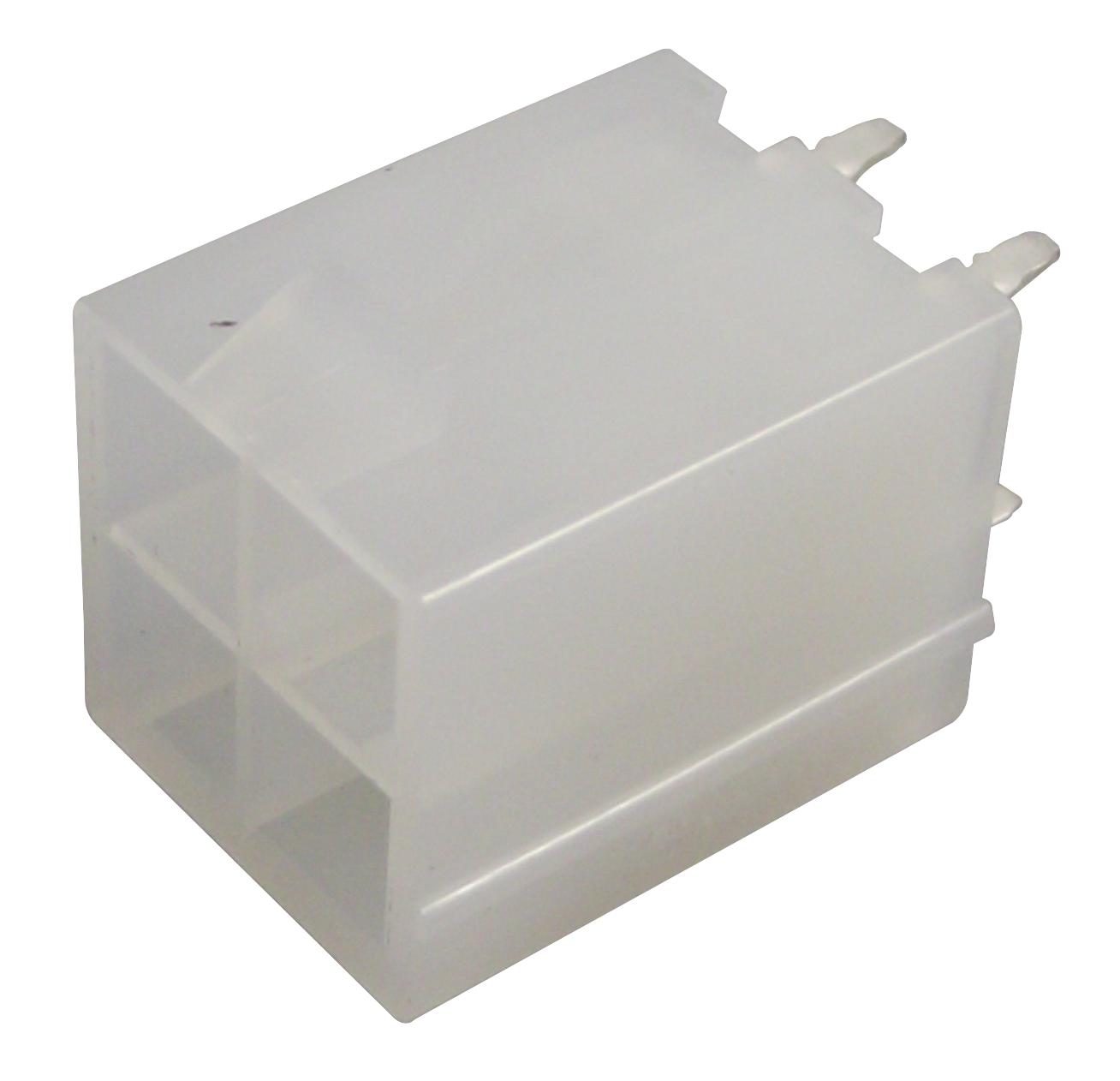

MULTICOMP PRO - MC34659 - Pin Header, Wire-to-Board, 4.2 mm, 2 Rows, 4 Contacts, Through Hole Straight, 2266(5566)S
- Pitch Spacing: 4.2mm
- No. of Contacts: 4Contacts
- Gender: Header
- Product Range: 2266(5566)S Series
- Contact Termination Type: Through Hole
- No. of Rows: 2Rows
- Contact Plating: Tin Plated Contacts
- Contact Material: Brass
- SVHC: No SVHC (15-Jan-2019)
- Connector Mounting: PCB Mount
- Contact Resistance: 10mohm
- Current Rating: 9A
- Insulation Resistance: 1000Mohm
- Material: Nylon 6.6
- Operating Temperature Max: 105°C
- Operating Temperature Min: -40°C
- Voltage Rating VAC: 600V
