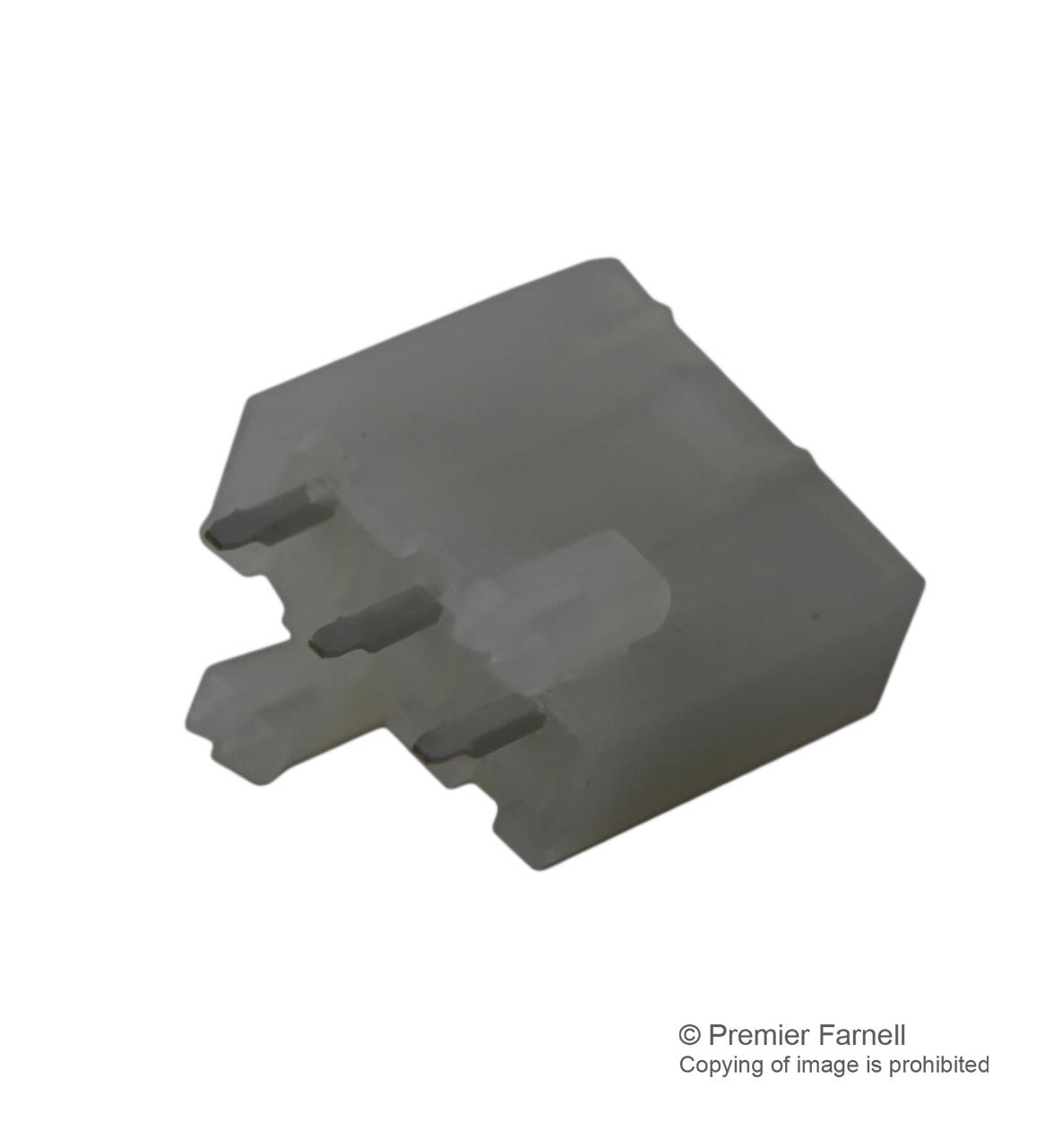

MULTICOMP PRO - MC34923 - Pin Header, Vertical, Wire-to-Board, 4.2 mm, 1 Rows, 3 Contacts, Through Hole Straight, MC34
- Pitch Spacing: 4.2mm
- No. of Contacts: 3Contacts
- Gender: Header
- Product Range: MC34 Series
- Contact Termination Type: Through Hole
- No. of Rows: 1Rows
- Contact Plating: Tin Plated Contacts
- Contact Material: Brass
- SVHC: No SVHC (15-Jan-2019)
- Connector Mounting: PCB Mount
- Current Rating: 9A
- Flammability Rating: UL94V-2
- Material: Nylon 6,6
- Operating Temperature Max: 105°C
- Operating Temperature Min: -40°C
- Voltage Rating VAC: 600V
