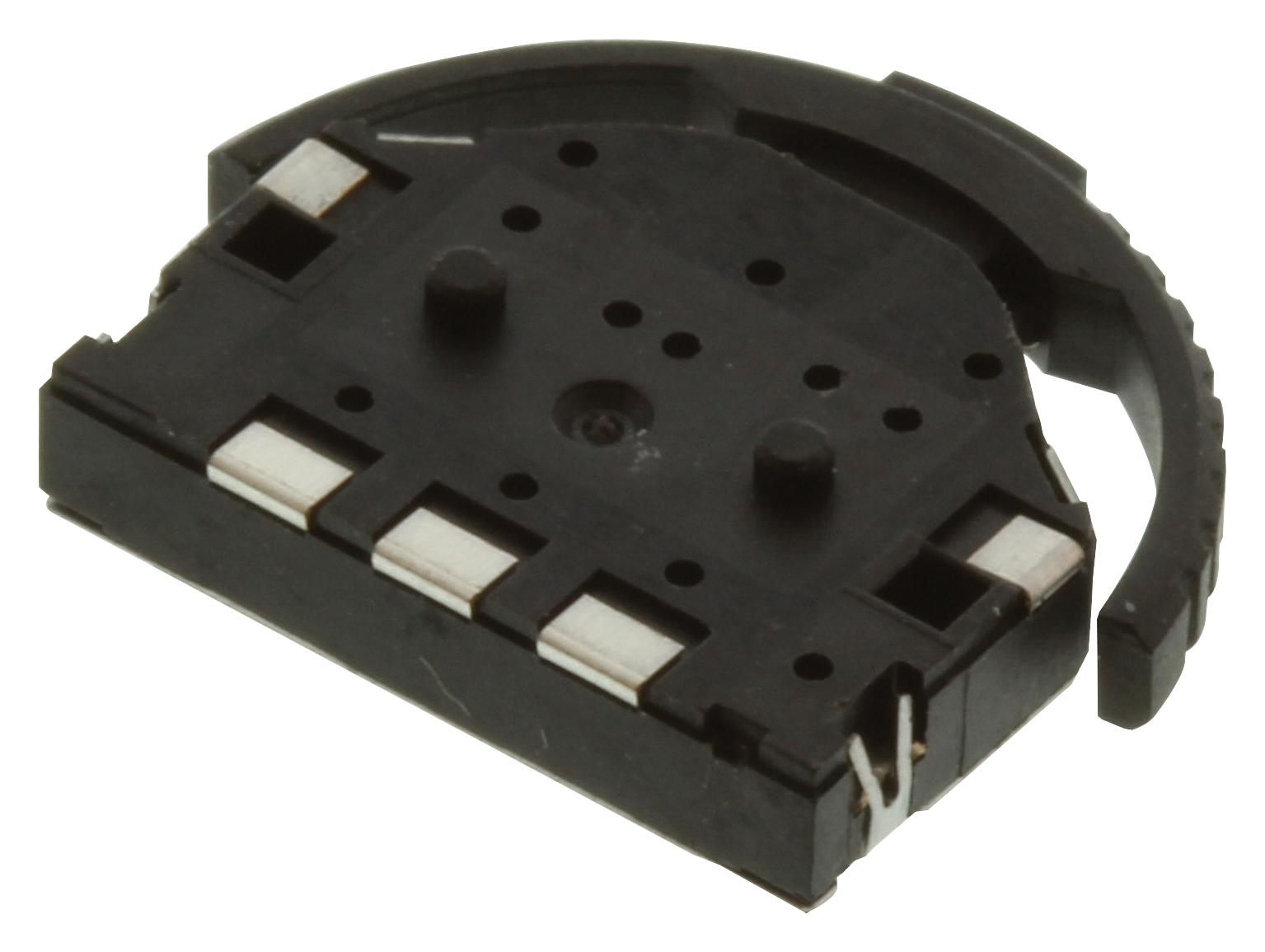

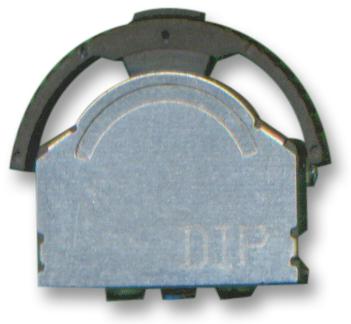

MCATE-1-V Switch, Card Detect, Top Actuated multicomp Pro

MULTICOMP PROSKU:MCATE-1-V Bestelcode:1316982

Prijs:
Actie prijs€1,59

Incl. BTW Verzendkosten berekening in de checkout

Voorraad:
Op voorraad (213 units)

Documenten en downloads

Omschrijving

MULTICOMP PRO - MCATE-1-V - Detector Switch, MCATE, SPST-NO, Solder, 1 mA, 5 V, 2.3 mm

  • Product Range: MCATE Series
  • Contact Configuration: SPST-NO
  • Switch Terminals: Solder
  • Contact Current Max: 1mA
  • Contact Voltage DC Nom: 5V
  • External Height: 2.3mm
  • External Width: 4.7mm
  • External Depth: 3.8mm
  • SVHC: No SVHC (15-Jan-2019)
  • Actuator / Cap Colour: Black
  • Contact Current DC: 1mA
  • Contact Resistance Max: 1ohm
  • External Length / Height: 5.3mm
  • Height: 2.3mm
  • Insulation Resistance: 100Mohm
  • Insulation Resistance Voltage: 100VDC
  • No. of Electrical Operations: 100000
  • Operating Force: 40gf
  • Operating Force Max: 40gf
  • Operating Temperature Max: 70°C
  • Operating Temperature Min: -20°C
  • Switch Operation: Off-On
