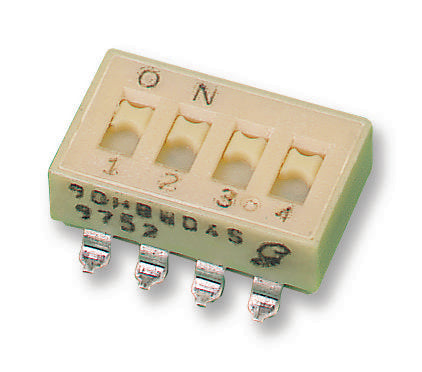

MCEMR-04-T Switch, Dil, SMD, 4WAY, SPST multicomp Pro

MULTICOMP PROSKU:MCEMR-04-T Bestelcode:1524007

Prijs:
Actie prijs€2,20

Incl. BTW Verzendkosten berekening in de checkout

Voorraad:
Op voorraad (109084 units)

Documenten en downloads

Omschrijving

MULTICOMP PRO - MCEMR-04-T - DIP / SIP Switch, 4 Circuits, Slide, Surface Mount, SPST, 24 VDC, 25 mA

  • No. of Circuits: 4Circuits
  • Switch Actuator Style: Slide
  • Switch Mounting: SMD
  • Contact Configuration: SPST
  • Contact Voltage DC Max: 24VDC
  • Contact Current DC Max: 25mA
  • Product Range: MCEMR Series
  • Switch Type: DIP Sealed
  • SVHC: No SVHC (15-Jan-2019)
  • Contact Resistance: 100mohm
  • Contact Resistance Voltage: 500VDC
  • Dielectric Strength VDC: 500VAC
  • External Depth: 6mm
  • External Width: 10.06mm
  • Flammability Rating: UL94V-0
  • Height: 3.4mm
  • Insulation Resistance: 100Mohm
  • Insulation Resistance Voltage: 500VDC
  • No. of Mechanical Operations: 2000
  • Operating Temperature Max: 85°C
  • Operating Temperature Min: -20°C
  • Pitch Spacing: 2.54mm
  • Row Pitch: 7.62mm
