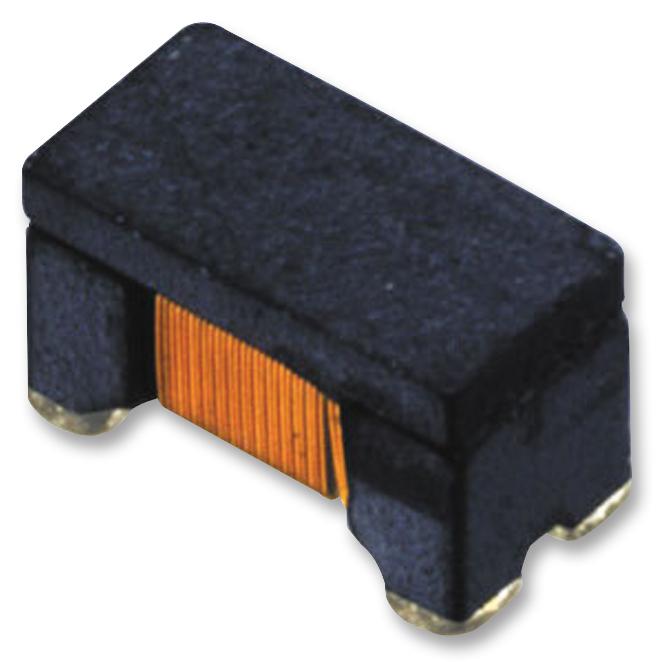

MULTICOMP PRO - MCFT000092 - Wirewound Inductor, 56 nH, 0.31 ohm, 1.9 GHz, 600 mA, 0603 [1608 Metric], MCFT
- Inductance: 56nH
- Product Range: MCFT Series
- DC Current Rating: 600mA
- High Frequency Inductor Case: 0603 [1608 Metric]
- Inductor Construction: Wirewound
- DC Resistance Max: 0.31ohm
- Inductance Tolerance: ± 5%
- Self Resonant Frequency Min: 1.9GHz
- SVHC: No SVHC (15-Jan-2019)
- External Depth: 1.12mm
- External Length / Height: 1.02mm
- External Width: 1.8mm
- Inductor Case Style: 0603 [1608 Metric]
