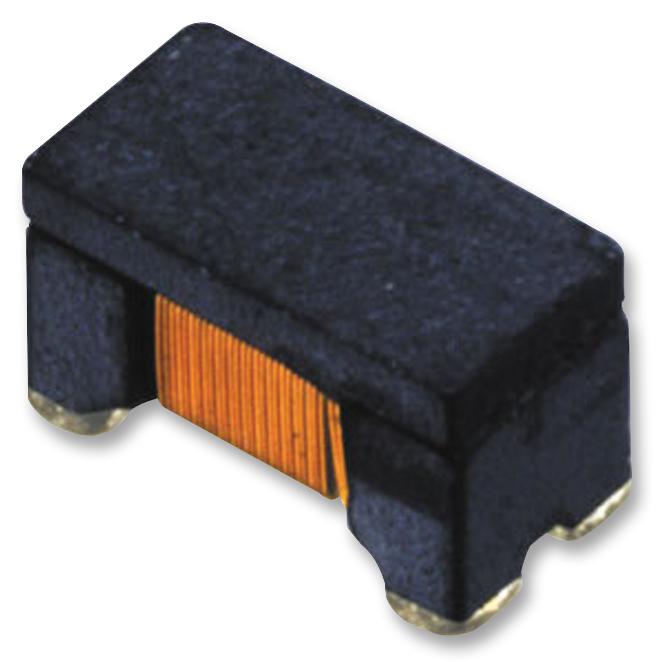

MULTICOMP PRO - MCFT000125 - Wirewound Inductor, 560 nH, 1.9 ohm, 340 MHz, 230 mA, 0805 [2012 Metric], MCFT
- Inductance: 560nH
- Product Range: MCFT Series
- DC Current Rating: 230mA
- High Frequency Inductor Case: 0805 [2012 Metric]
- Inductor Construction: Wirewound
- DC Resistance Max: 1.9ohm
- Inductance Tolerance: ± 5%
- Self Resonant Frequency Min: 340MHz
- SVHC: No SVHC (15-Jan-2019)
- External Depth: 1.73mm
- External Length / Height: 1.52mm
- External Width: 2.29mm
- Inductor Case Style: 0805 [2012 Metric]
